The C5 Corvette is one of the most capable chassis platforms GM ever built — but if you want it to dominate on the track, street, or drift pad, the factory suspension won’t cut it. The bones are good. The potential is massive. But unlocking that performance means diving deep into your suspension setup.
In this long-form guide, we break down every component of the C5 Corvette suspension system and how to upgrade it properly. From coilovers to control arms, this is everything you need to transform your Corvette into a serious handling machine.
🏁 Why Upgrade the C5 Suspension?
The stock suspension geometry is decent — and the factory transverse leaf spring was a clever weight-saving design — but it’s not designed for today’s grip levels or modern track expectations.
Here’s what you gain from a full suspension overhaul:
- Better camber and caster control through adjustable arms
- Improved grip and feedback with proper coilovers
- Corrected geometry for lowered vehicles or drift builds
- Stronger, serviceable parts that don’t flex or bind
Whether you're building a dedicated time attack C5 or a wide-angle drift car, your suspension is the key to everything.
🔧 C5 Coilovers: The Core of Any Upgrade
The first step is eliminating the transverse leaf spring and moving to true C5 Corvette coilovers. This gives you real spring rates, real damping control, and tunability for height, rebound, and preload.
What to look for:
- Monotube or digressive valving
- Front and rear independent preload control
- Custom spring rates based on use (track, drift, street)
- Remote reservoirs for serious track use
SLRspeed offers custom-valved coilovers for the C5 Corvette that are designed for motorsports — not just low looks. Expect race-grade construction, precise handling feedback, and long-term durability under abuse.
🔁 Adjustable Control Arms – The Real Suspension Secret
This is where your Corvette gets dialed in.
Factory C5 arms offer no adjustability. So when you lower the car or increase steering angle, you throw the geometry out of spec. That’s where SLR adjustable control arms come in.
Benefits of Adjustable Control Arms:
- Correct camber/caster on lowered vehicles
- Fix bump steer by adjusting tie rod height
- Eliminate binding with proper spherical bearings
- Increase strength for racing and drifting

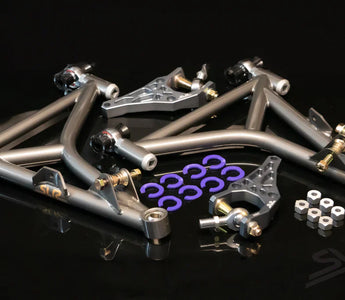

Front Control Arms:
SLR arms give you both camber and caster adjustment while increasing strength with boxed, TIG-welded steel. These are built for abuse, designed for track.
Rear Toe Arms:
As you lower the C5 rear, you gain unwanted toe-in. Adjustable toe arms correct this, helping reduce tire wear and improve rotation under throttle.
📐 C5 Drift Suspension: What Changes?
Drifting a Corvette is its own challenge. The wheelbase, power, and weight transfer are unique — but the C5 can be an amazing drift chassis if set up right.
SLR’s drift-spec C5 setup includes:
- High-angle steering knuckles
- Shortened upper control arms for more camber gain
- Low Ackermann options for faster transitions
- Adjustable toe and camber rear arms
This allows you to run aggressive angle while still keeping the tire contact patch optimized — crucial for pro-am and grassroots drivers alike.
💡 C5 Suspension Setup Tips (Track & Drift)
Track:
- Spring rates: ~12k front / 10k rear
- Camber: -2.5 to -3.5 front
- Caster: +7 to +8°
- Toe: 0 front / slight toe-in rear
Drift:
- Spring rates: 12k front / 6k rear
- Camber: -6 to -8 front
- Caster: +7° with low Ackermann setup
- Toe: 1/8” toe out front / 1/16” toe-in rear
These setups provide aggressive response, good weight transfer, and maximum control at the limit.
🔩 Don’t Forget the Supporting Mods
- Spherical bushings replace worn rubber for precision
- Bump steer kits keep handling predictable under compression
- Chassis bracing increases rigidity and feedback
- Sway bar upgrades reduce body roll
We carry all of these for the C5 platform — engineered by drivers who test on real tracks.
📦 Where to Buy the Best C5 Suspension Parts
SLRspeed’s Corvette Collection includes everything you need to get your C5 dialed in. From bolt-on arms to full coilover packages, we only sell what we’ve tested ourselves on real cars.
Don’t trust your handling to eBay arms or off-brand suspension kits. If you’re serious about performance, use gear made for racing — not just lowering.
🚀 Final Thoughts: The Suspension is the Soul of the C5
Power is fun, but suspension wins races. And drifts. And canyon battles.
If you want your C5 Corvette to live up to its potential, upgrading the suspension isn’t optional — it’s essential. Whether you're going sideways at 100mph or chasing lap times, every part of your suspension system needs to be dialed.
SLRspeed is here to help you build it right — the first time.
👉 Shop C5 Corvette Suspension Parts Now
