Coilovers aren’t just about lowering your car — they’re about unlocking control, precision, and the fine-tuned balance every serious driver dreams of.
What Exactly Are Coilovers?

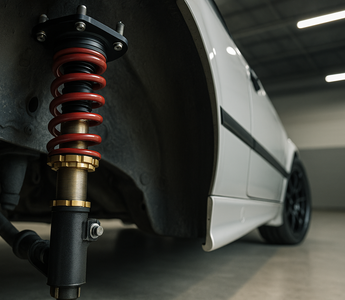

A coilover suspension combines a coil spring and shock absorber into one integrated unit — hence the name “coil-over-shock.” Unlike a factory strut or separate spring/shock setup, coilovers allow fine-tuning of both ride height and damping characteristics.
This combination gives drivers the ability to adjust how the car behaves through corners, over bumps, and under load transfer. For anyone serious about performance — from canyon runs to drift circuits — understanding coilovers is the foundation of suspension tuning.
Breaking Down the Components of a Coilover
- Spring: Stores and releases energy as the wheel moves up and down. Its stiffness (spring rate) determines how much force it takes to compress.
- Damper (Shock Body): Controls the speed of spring movement using internal oil and valving. Prevents oscillations and keeps tires planted.
- Adjustable Perch: A threaded collar that lets you change spring preload and ride height.
- Camber Plate (Top Mount): Often adjustable to fine-tune front suspension geometry for sharper turn-in or tire wear control.
- Bump Stop and Dust Boot: Protect the damper from impact and debris, preserving performance over time.
Together, these parts form a modular system that’s both tunable and serviceable — key differences compared to OEM-style suspension.
How Coilovers Actually Work
The coilover’s job is to manage both the spring’s stored energy and the damper’s control of that movement. As your car hits a bump or weight transfers in a corner, the spring compresses. Without damping, the spring would oscillate uncontrollably. The shock’s internal piston pushes oil through precisely engineered valves, converting kinetic energy into heat and stabilizing the chassis.
High-end coilovers like SLRspeed Drift Spec and Track Spec systems use monotube dampers for consistent performance and thermal stability under repeated compression cycles.
Monotube vs. Twin-Tube Coilovers — What’s the Difference?
Coilovers typically fall into two major categories: monotube and twin-tube.
Monotube Coilovers
These use a single cylinder containing both the damping piston and gas chamber. Benefits include faster response, better heat dissipation, and more direct feel. They’re the preferred design for motorsport use due to precision and consistency.
Twin-Tube Coilovers
Twin-tube designs house a smaller inner tube within an outer reservoir. They provide a more comfortable ride, are cheaper to manufacture, and handle bumps more softly — ideal for daily drivers or mild street performance.
Both can perform excellently if designed well — it’s about matching your needs to your driving style.
Benefits of Coilovers Over Standard Suspension
- Adjustable Ride Height: Dial in the perfect stance or corner balance setup.
- Better Handling: Reduce body roll and improve chassis response through precise damping control.
- Corner Weighting Capability: Achieve perfect balance across all four wheels for track precision.
- Customizable Spring Rates: Swap springs to tune for grip, comfort, or weight distribution.
- Durability: Performance-grade coilovers are fully rebuildable and serviceable.
A properly tuned coilover system doesn’t just make your car look better — it makes it faster, safer, and more predictable in every condition.
How to Adjust Coilovers for Your Driving Style
Coilovers offer multiple adjustment points that can transform how your car behaves:
- Preload: Adjusts how much tension is on the spring at static ride height. Affects ride comfort and response.
- Ride Height: Controls the car’s center of gravity and roll behavior. Lower isn’t always better — proper balance is key.
- Damping: Most coilovers feature 16–32 levels of rebound and compression adjustment. Fine-tune to your tire and surface type.
- Camber: On coilovers with adjustable top mounts, camber affects how tires contact the ground mid-corner.
Start in the middle settings and work gradually. Small adjustments can make dramatic differences in feedback and control.
Understanding Spring Rates and Damping Curves
Spring rate defines how stiff a spring is — measured in kg/mm or N/mm. Higher rates reduce body roll but can make the ride harsher. Damping adjustment should complement spring stiffness to maintain traction. Too little damping, and the car bounces; too much, and it feels skittish over bumps.
Experienced tuners aim for balance — matching natural frequency between front and rear to optimize weight transfer. This concept is critical for drifting, autocross, or time attack applications.
Installation Tips for Coilover Systems
- Inspect all mounts, bushings, and hardware before installation.
- Measure factory ride height for reference.
- Torque all bolts to manufacturer specs with the car loaded on the ground.
- After installation, perform an alignment and corner balance.
Skipping alignment after installing coilovers is one of the most common mistakes. Suspension geometry changes drastically — camber, toe, and caster must be recalibrated for proper handling and tire wear.
Coilover Maintenance and Longevity
Quality coilovers last for years with proper care. Keep threads lubricated with anti-seize, clean regularly, and avoid driving through road salt or grime without washing. Rebuild intervals depend on usage — typically every 20,000–30,000 miles for street cars and once per season for track use.
When maintained properly, your coilovers become a lifetime suspension system — not a consumable part.
Why Enthusiasts Choose SLRspeed Coilovers
SLRspeed coilovers are built from motorsport-grade components with carefully calculated damping curves for both drift and circuit setups. Each kit is tuned for specific chassis dynamics — not just “one-size-fits-all” lowering kits.
From BMW E36 and E46 platforms to 350Z, Corvette, and custom builds, SLRspeed’s engineering ensures the perfect combination of comfort, control, and cornering precision.
Common Coilover Questions
Are coilovers good for daily driving?
Yes — with correct spring rates and damping, coilovers can offer a comfortable and controlled ride even on daily commutes.
Do coilovers need maintenance?
Periodic cleaning and lubrication of threads prevent corrosion. Rebuilding every few seasons restores damping performance.
Are cheap coilovers worth it?
Low-cost kits may use poor valving and inconsistent spring rates, leading to uneven ride quality and poor longevity. Investing in quality pays off in safety and performance.
Final Thoughts: Coilovers as the Foundation of Performance
Coilovers are more than just a suspension upgrade — they’re a tuning tool. They connect the physics of weight transfer, tire grip, and chassis balance into one system that you can fully control. Whether you drift, grip race, or just want to master your car’s feel, understanding coilovers unlocks the next level of driving precision.
Ready to upgrade? Explore SLRspeed Coilovers today and experience suspension done right — engineered, tested, and trusted by drivers who demand the most from their machines.
