Alignment is the hidden foundation of vehicle performance — influencing steering response, tire wear, and cornering balance more than almost any other setup factor. Yet for most enthusiasts, alignment has always seemed like something only a professional shop could do. That’s where toe plates change everything.
These simple, lightweight tools allow you to measure and adjust wheel toe in your garage, driveway, or pit lane with surprising accuracy. Whether you’re dialing in your drift car before a competition, or fine-tuning your street alignment for better tire life, toe plates are the fastest way to achieve professional results without the cost or complexity of an alignment rack.
>> Check out SLR's Toe Plates here <<
What Are Toe Plates?
Toe plates are flat metal or aluminum panels that sit flush against the sides of your car’s tires. By running tape measures through pre-cut slots on each plate, you can instantly determine whether your wheels are toed-in, toed-out, or perfectly parallel.
They’re a staple tool in professional motorsport paddocks — from grassroots drift events to top-tier GT racing — because they allow fast, repeatable alignment checks between runs.
Advantages of Using Toe Plates:
- Portable and lightweight — perfect for home garages or trackside.
- Quick to use — full front or rear toe check in under five minutes.
- No lift required — measure with the car on the ground under normal load.
- Works on any vehicle width or wheel setup.
- Affordable compared to full laser alignment systems.
Understanding Toe and Why It Matters
“Toe” refers to the direction your tires point relative to the vehicle’s centerline. It’s measured as the difference between the distance across the front edges of your tires and the distance across the rear edges.
There are two types of toe configurations:
- Toe-In: Front of tires angled slightly toward each other. Increases stability and straight-line tracking.
- Toe-Out: Front of tires angled slightly away from each other. Improves turn-in response and rotation — preferred for drifting and autocross setups.
Even minor toe changes (as little as 1/16”) can drastically affect how a car feels. Too much toe-in will cause sluggish steering and tire wear on the outer shoulders. Too much toe-out can make a car darty and unpredictable at high speeds. That’s why consistent toe measurements are crucial — and why toe plates are a racer’s best friend.
How Toe Plates Work: The Geometry Explained
The principle behind toe plates is elegantly simple: they turn two flat reference surfaces into a precise alignment tool. When you measure the front and rear distances between plates using a tape measure, the difference represents your total toe.
For example, if the front distance is smaller than the rear distance by 1/8 inch, your wheels are toed-in. If it’s larger, they’re toed-out.
Mathematical Example:
- Front measurement: 58.25”
- Rear measurement: 58.50”
- Difference: 0.25” (1/8” per wheel toe-out)
This simple geometry allows toe plates to match the accuracy of much more expensive laser or string alignment systems, as long as the measurements are taken carefully and consistently.
How to Use Toe Plates: Step-by-Step Alignment Process
Follow these steps for precise, repeatable results using toe plates. This process can be done alone, though a second person can help speed things up.
1. Prepare Your Workspace
- Park the car on a level surface with even tire pressure.
- Ensure steering wheel is centered.
- Bounce the suspension a few times to settle it into its natural ride height.
2. Position the Toe Plates
- Place one plate against the outside of each front wheel, keeping them vertical.
- Make sure both plates are parallel and resting evenly against the tire sidewalls.
- For wider track cars, you can use spacers to extend the plate reach.
3. Insert the Tape Measures
- Run one tape measure through the top slot (front edge of the tires).
- Run the second tape through the lower slot (rear edge of the tires).
- Pull both tapes tight and read the measurements simultaneously.
4. Record the Measurements
Subtract the front reading from the rear reading:
Toe Difference = Rear Measurement – Front Measurement
- If the result is positive, your car has toe-in.
- If the result is negative, your car has toe-out.
5. Adjust Toe Settings
Make small adjustments to the tie rods — no more than a half turn at a time. Rotate both sides equally when centering the steering wheel. Recheck after each adjustment until your target measurement is achieved.
6. Verify the Steering Center
Roll the car back and forth a few feet to relieve tension, then recheck measurements. Ensure that your steering wheel remains centered before locking in final tie rod adjustments.
Recommended Toe Settings for Different Driving Styles
Your ideal toe setting depends on how the vehicle is used. Here’s a guideline table for typical setups:
| Driving Type | Front Toe | Rear Toe | Characteristics |
|---|---|---|---|
| Street / Daily | 0 to +1/16” in | +1/16” in | Stable highway tracking and tire longevity |
| Track / Circuit | 0 to -1/16” out | 0 | Sharp turn-in, reduced understeer |
| Drift / Gymkhana | -1/8” out | 0 to -1/16” out | Increased front rotation, quicker steering |
SLRspeed recommends starting conservatively and adjusting in small increments to suit your car’s suspension geometry and tire compound.
Toe Plates vs Other Alignment Tools
There are several methods for checking alignment — from string setups to laser tools. Each has its place, but toe plates strike the perfect balance between speed, cost, and precision.
Toe Plates vs String Alignment
- Strings provide full 4-wheel geometry data but take longer to set up.
- Toe plates are faster and ideal for frequent trackside use.
Toe Plates vs Laser Alignment
- Laser systems are more precise but cost thousands of dollars.
- Toe plates deliver 95% of the accuracy for less than 5% of the price.
Toe Plates vs Tape Measure Only
- Toe plates remove inconsistencies by providing flat reference surfaces.
- Direct tape measurement across tires can be inaccurate due to tread curvature.
Tips for Maximum Accuracy
- Always measure on a flat, level surface.
- Use consistent tire pressure and steering center.
- Measure several times and average your results.
- Mark the tire with chalk at the contact point to replicate measurement locations.
- Recheck after any suspension adjustment or corner balancing session.
Toe alignment is dynamic — it changes under compression and droop — so frequent checks help maintain precision in real-world conditions.

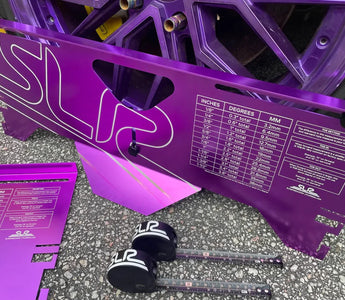

Why SLRspeed Toe Plates Stand Out
At SLRspeed, toe plates are engineered for race shop-level accuracy and trackside reliability. Built from precision-cut aluminum, they’re lightweight, durable, and resistant to bending even under repeated use.
SLRspeed Toe Plate Highlights:
- Laser-cut 6061 aluminum for rigidity and low weight
- Dual tape measure slots for simultaneous readings
- Machined edges for exact tire contact
- Protective anodized finish to prevent corrosion
- Designed and tested in motorsport environments
Whether you’re a track enthusiast or professional drifter, these toe plates make alignment adjustments fast, accurate, and repeatable every time.
Final Thoughts: Alignment Precision Without Complexity
In performance tuning, small changes make huge differences — and toe is one of the most critical yet overlooked aspects of suspension setup. Toe plates offer a simple, cost-effective way to gain full control over your alignment, ensuring your car handles consistently whether it’s on the street or the track.
Forget waiting weeks for an alignment rack — with toe plates, you can measure, adjust, and test in the same afternoon. The best part? You’ll feel the difference the moment you turn the wheel.
➡ Explore SLRspeed Toe Plates — Trusted by Racers, Built for Precision
