When it comes to alignment tuning, few tools are as simple yet effective as a good set of toe plates. They’ve been a staple in the motorsport world for decades, offering the precision of professional alignment machines — without the cost or complexity. Whether you’re fine-tuning a drift car, dialing in your track setup, or just want your street car to drive straight and handle properly, mastering toe plate usage is essential.
This comprehensive guide breaks down how toe plates work, how to use them accurately, and why they’re the most underrated tool in a driver’s setup arsenal — especially when combined with SLRspeed’s precision-engineered aluminum designs.
>> Check out SLR's Toe Plate kit here <<
What Are Toe Plates?
A toe plate is a flat, precisely cut aluminum or steel plate designed to measure the toe angle — the direction your wheels point relative to each other when viewed from above. Each plate sits flush against a tire’s sidewall, allowing you to measure the distance between the front and rear edges of your wheels using a simple tape measure.
It’s a fast, accurate way to check whether your car’s front or rear wheels are toed-in (pointing toward each other) or toed-out (pointing away from each other). Toe plates are a cornerstone of DIY alignment, allowing racers and enthusiasts to make fine adjustments from their own garage or pit lane.
Why Toe Angle Matters So Much
Your car’s toe setting directly affects steering response, stability, tire wear, and cornering feel. A few millimeters of change can completely transform how the car behaves. Toe settings are categorized into three main types:
- Toe-In: The front of the tires point slightly toward each other. Increases straight-line stability but can reduce turn-in sharpness.
- Toe-Out: The front of the tires point away from each other. Improves turn-in response and mid-corner agility but can reduce straight-line stability.
- Zero Toe: Tires are perfectly parallel. Ideal for maximum efficiency and tire life, though less dynamic for performance driving.
Whether you’re drifting, road racing, or daily driving, toe adjustment allows you to tailor steering precision and tire feedback to your driving style.
The Physics Behind Toe Settings
Toe angles influence how the tire’s contact patch interacts with the road during motion. Toe-in promotes self-centering and stability by preloading the suspension slightly outward, while toe-out enhances front-end agility by reducing scrub resistance during initial steering input.
However, toe also affects rolling resistance and tire wear. Excessive toe-in scrubs tire shoulders, while too much toe-out can feather tread edges. That’s why precision alignment tools like toe plates are critical — even small errors can create inconsistent handling and shorten tire life dramatically.
How Toe Plates Work
Toe plates rely on simple geometry. Each plate has a flat surface that sits against the tire sidewall. You take two measurements using a tape measure — one at the front edge of the tires, one at the rear edge. The difference between these two numbers is your toe angle.
Example:
- Front measurement: 58.00 inches
- Rear measurement: 58.25 inches
In this example, the rear measurement is larger, meaning the tires are pointed toward each other — a toe-in condition of 0.25 inches total (or 1/8 inch per side).
Toe plates make this process repeatable, fast, and incredibly consistent. They’re especially useful for quick alignment checks between track sessions, drift runs, or during shop work after suspension changes.
Step-by-Step: How to Use Toe Plates for Accurate Alignment
Follow this process for repeatable results, whether you’re aligning at home or in the paddock:
Step 1: Level Your Surface
Make sure your car is parked on a level, flat surface. Use wheel scales or alignment pads if available. Uneven ground can distort your readings.
Step 2: Settle the Suspension
Roll the car forward and back a few feet to eliminate bushing preload. The suspension must be in a natural resting state before measuring.
Step 3: Place the Toe Plates
Position one toe plate against each tire sidewall, ensuring they sit evenly and flat. Many plates — like the SLRspeed Toe Plates — feature machined slots to secure a tape measure perfectly at tire height.
Step 4: Take Your Measurements
Hook a tape measure into the front slot on both plates and record the measurement across the car. Then repeat for the rear slots. Subtract the two numbers to find your toe difference.
Step 5: Adjust as Needed
Loosen your tie rods or toe adjusters and rotate them equally on both sides until you achieve the desired reading. Always re-roll the car between adjustments to reset suspension preload.
Recommended Toe Settings for Common Builds
| Vehicle Type | Front Toe | Rear Toe | Notes |
|---|---|---|---|
| Street / Daily | 0.00” to 0.05” Toe-In | 0.10” Toe-In | Stable and tire-friendly |
| Track / Time Attack | 0.10” Toe-Out | 0.05” Toe-In | Sharper turn-in with stability |
| Drift Setup | 0.20” Toe-Out | 0.00” | Quick transitions and consistent slide control |
These values are general starting points. Fine-tuning toe depends on suspension geometry, tire compound, and driving style. Toe plates make this experimentation fast and repeatable.
Toe Plates vs String Alignment Systems
Many enthusiasts use string alignment setups for full camber, caster, and toe measurement. However, toe plates excel at speed and simplicity. A full string setup can take 30+ minutes to set up — toe plates deliver accurate toe readings in under two.
Advantages of Toe Plates:
- Portable and lightweight
- No need for jigs or stands
- Accurate to within 1/32 inch
- Perfect for quick alignment checks at the track
When to Use Strings:
- When setting up a fresh chassis from scratch
- When measuring camber and caster simultaneously
- For endurance racing where ultra-precise toe is critical
Why SLRspeed Toe Plates Stand Out

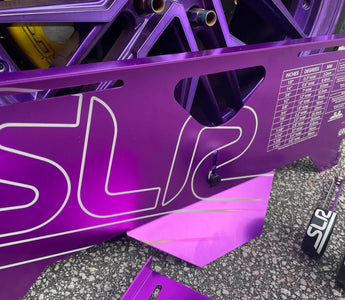

The SLRspeed Toe Plates are designed by racers, for racers. Built from high-grade aluminum, each plate is laser-cut and perfectly flat to ensure measurement consistency across every alignment session.
Features That Matter:
- Laser-etched measurement lines for easy visibility
- Precision-machined slots for accurate tape placement
- Lightweight construction for portable pit use
- Non-slip design to prevent movement during measurement
- Compatible with most tire diameters from 15” to 19”
These aren’t generic imported plates — they’re engineered for high-angle drift setups, race car alignment accuracy, and repeatable results every time you wrench.
Common Mistakes When Using Toe Plates
- Not rolling the car between adjustments — preload ruins accuracy.
- Uneven plate placement — causes skewed readings.
- Measuring at different tire heights — must be level and parallel.
- Neglecting tire pressure consistency between sides.
Professional teams re-check toe settings every session, especially after curb strikes or component swaps. Consistency is key — and toe plates make that achievable in minutes.
Advanced Tip: Using Toe Plates for Rear Toe on Independent Suspension
For cars like BMWs, Corvettes, or Miatas with independent rear suspension, toe plates can also be used at the rear. Simply jack the front slightly or place spacers under the front wheels so the car remains level. Then, repeat the same measurement and adjustment process for the rear arms.
Fine-tuning rear toe improves stability under throttle, especially in drift or time-attack cars. Even 0.05” changes can drastically alter how the rear rotates through a corner.
Bringing It All Together: Alignment as a Performance Weapon
A properly aligned car drives faster, feels smoother, and wears tires evenly. Toe plates empower you to manage this crucial part of car setup without relying on a shop or expensive alignment racks. With practice, you’ll be able to set your own baseline before every event — just like professional teams do.
➡ Explore SLRspeed Toe Plates and start transforming your alignment precision today.
Precision isn’t reserved for race teams anymore — it’s available in your own garage with the right tools and understanding.
