When it comes to steering feel, few components matter more than your tie rods. The outer tie rod end—often overlooked—plays a critical role in translating steering input into precise wheel movement. For drift cars, race cars, or even spirited street builds, stock tie rods simply don’t cut it.
This guide will cover everything you need to know about outer tie rods—what they do, how to know when they’re worn out, and what makes an upgraded tie rod worth the money.
What Does an Outer Tie Rod Do?
The outer tie rod is the pivot point at the end of the steering rack that connects to your knuckle. When you turn the steering wheel, your inner tie rods push or pull the outers, which rotate the wheels left or right.
In performance driving, this is where steering angle, Ackermann geometry, and toe settings come into play—making the outer tie rod a critical link between human input and chassis response.
Symptoms of a Bad Outer Tie Rod
- 🔧 Loose or wandering steering
- 🔧 Uneven tire wear (especially toe wear)
- 🔧 Clunking or popping noises over bumps or when turning
- 🔧 Vibration at highway speeds
- 🔧 Poor alignment or inability to hold toe settings
If your car shows any of these signs, inspect the ball joint at the tie rod end—any play means it’s time for a replacement.
Why Upgrade Your Tie Rods?
Stock tie rods are built for comfort, not control. They flex, wear out, and can’t handle extreme angles. Upgraded tie rods from SLR solve these issues with:
- 💪 Reinforced rods for higher strength under angle
- 🎯 Spherical bearings for zero slop and sharper response
- 🔩 Adjustable length to fine-tune toe and Ackermann
- 🚗 Drift-tested geometry to maintain control at full lock
In drift setups with angle kits or modified knuckles, the outer tie rod becomes even more important. It must maintain alignment through massive steering sweeps while resisting flex or binding.
Inner vs Outer Tie Rods: What’s the Difference?
While both are part of the steering linkage, the inner tie rod connects directly to the steering rack, and the outer tie rod connects to the knuckle.
Think of it like this:
- Inner = Push/pull (from rack)
- Outer = Pivot (to wheel)
Do Outer Tie Rods Affect Alignment?
Yes. Toe is adjusted at the outer tie rod. Worn or bent tie rods will throw off your alignment and make it impossible to maintain toe-in or toe-out settings.
After installing new tie rods—especially adjustable ones—always get an alignment. For drift setups, this may include setting aggressive toe-out up front.
Best Outer Tie Rods for Drifting

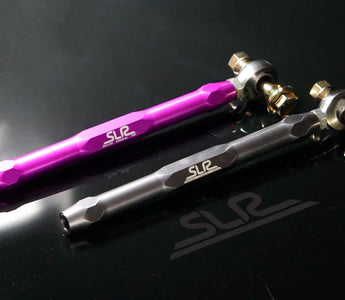

SLR offers high-clearance, high-strength tie rods that are designed specifically for use with angle kits, quicksteer setups, and modified knuckles.
- 🔥 CNC-machined ends with precision rod ends
- 🔥 Extended threads for adjustable length
- 🔥 Clearance for high-lock setups
- 🔥 Compatible with E30, E36, E46, and C5/C6 Corvettes
Whether you're street skidding or running FD-style setups, these tie rods won’t let you down under pressure.
How to Measure Tie Rod Length
Tie rods are ordered by length. If your car has an angle kit, wide wheels, or offset lollipops, you may need extended tie rods.
General SLR Guidelines:
- E36/E46 Super Kit = 9” tie rods
- E36/E46 Ultra Kit = 10” tie rods
- C5/C6 Corvette Super = 7” tie rods
- C5/C6 Quicksteer = 4.75” tie rods
Use a tape measure between the rack and knuckle mount points with the wheels straight to determine required length. If in doubt, message us!
Installation Tips
- 🛠️ Use anti-seize on threads to make future adjustments easier
- 🛠️ Torque locking nuts fully after alignment
- 🛠️ Don’t overtighten spherical joints—they need to pivot
- 🛠️ Inspect inner joint boots for wear while you’re in there
Conclusion: Don’t Sleep on the Outer Tie Rod
Your steering system is only as strong as its weakest link—and for many cars, that’s the tie rod. Whether you’re daily driving, hitting track days, or linking turns at the local drift event, upgraded tie rods improve control, extend part life, and let you dial in your ideal toe and steering geometry.
