Type 4 Universal Adjustable Quick Disconnect Sway Bar Links

What started as a prototype for Jeeps and the Toyota RAV4 has grown into one of the most universal sway bar link systems we offer.

RedRunner Designs Type 4 Quick Disconnect Sway Bar Links use an adjustable double heim design that can be built in a wide range of lengths and configured with either 7/16 inch or 12 mm quick disconnect pins.

From Jeeps and compact SUVs to full size trucks, larger SUVs, and even some SxS applications, the Type 4 system is designed for vehicles that need a strong, adjustable link with the ability to quickly disconnect the sway bar for more suspension articulation off road.

With six available length ranges and two quick disconnect pin sizes, these are some of the easiest RedRunner links to adapt to a wide variety of vehicles and custom suspension setups.

✅ Key Features:

• Quick Disconnect Design – Pull the pins and disconnect your sway bar when you need more suspension movement off road.
• Universal Double Heim Design – Adjustable at both ends to work with a wide range of vehicles and suspension setups.
• Six Length Options – From compact applications to full size trucks and heavily modified suspension setups.
• Two Quick Disconnect Pin Sizes – Choose 7/16 inch or 12 mm to match your mounting points.
• Heavy Duty Construction – Built with quality FK Bearing heims for strength, adjustability, and demanding use.
• Adjustable and Rebuildable – Fine tune the length for your setup and replace worn components instead of replacing the entire link.
• Zinc Coated – Helps resist corrosion and stand up to the elements.
• Made in the USA – Proudly made on home turf.

📏 Available Lengths

Extra Short
4.5–5.75 inches center to center

Short
5–6.25 inches center to center

Standard
6.5–7.75 inches center to center

Extended
8.5–9.75 inches center to center

Long
12–13.25 inches center to center

Extra Long
14–15.25 inches center to center

🔩 Quick Disconnect Pin Size

Choose the pin size that best matches the thickness of your vehicle's mounting point or bracket.

7/16 Inch Pin — Gold Bolt

• 15.25 mm usable thread
• Approximately 0.60 inch usable thread
• Best suited for thinner mounting points or tabs

12 mm Pin

• 38 mm usable thread
• Approximately 1.5 inches usable thread
• Better suited for thicker mounting points, brackets, or stacked hardware

Usable thread is the remaining threaded mounting space available after the nut, washer, and proper nyloc engagement are accounted for.

Not sure which pin size you need? Measure the thickness of your mounting point and contact us with your vehicle information and photos before ordering.

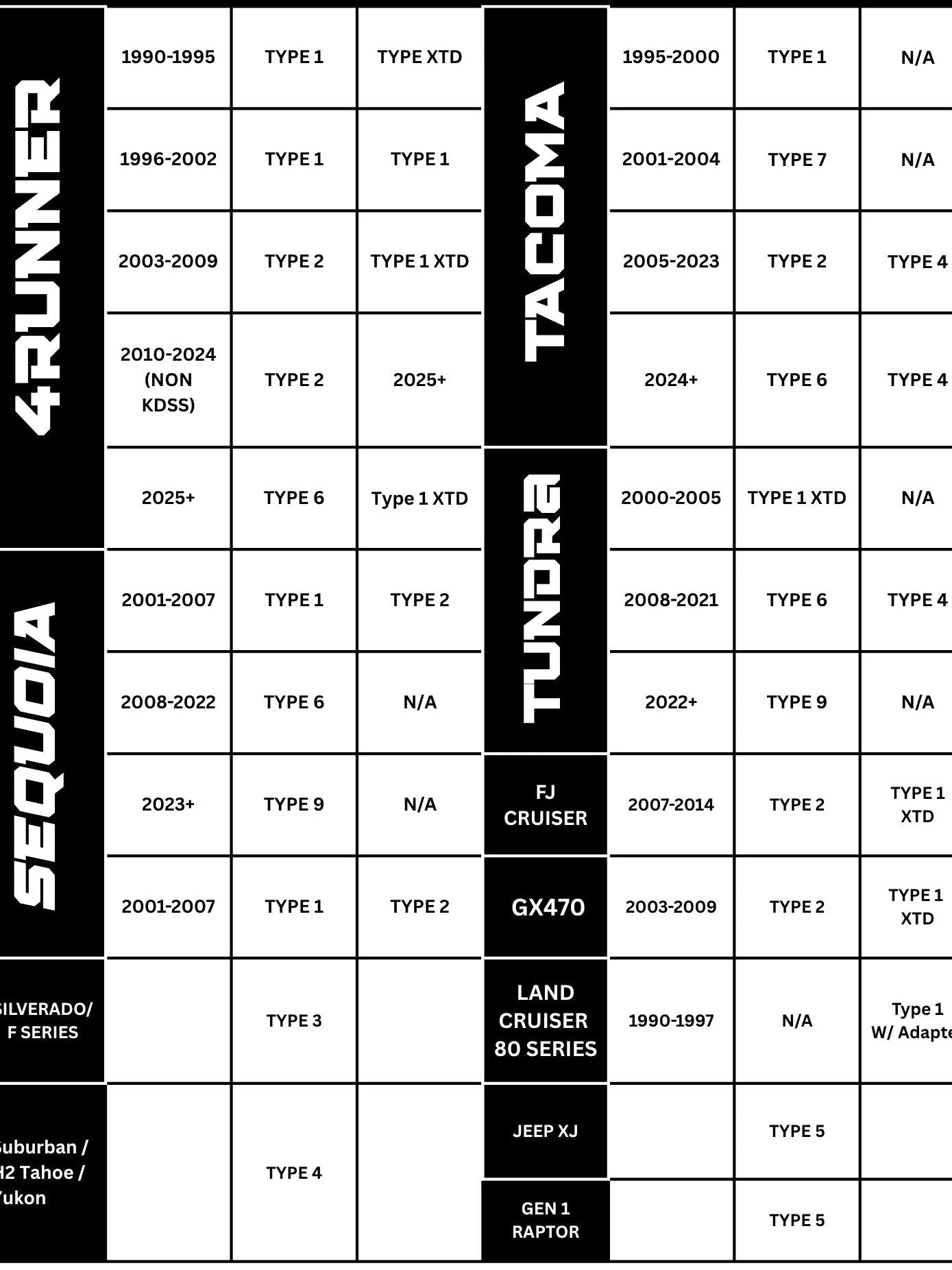

🔧 Common Applications

The Type 4 system started with Jeep and Toyota RAV4 applications, but has grown into one of the most versatile link styles we offer.

Common applications include:

• Jeep JK
• Jeep YJ
• Jeep TJ
• Jeep JT
• Toyota RAV4
• Chevrolet Suburban
• GMC Yukon
• Chevrolet Tahoe
• Hummer H2
• Selected trucks and SUVs
• Selected SxS applications
• Custom and modified suspension setups

Our fitment list is still growing.

Because Type 4 links are available in multiple lengths and two pin sizes, the correct setup depends on your vehicle, mounting points, and suspension configuration.

If you do not see your vehicle listed, send us your year, make, model, current sway bar link mounting length, mounting point thickness, and photos of both mounting points. We will help you determine the correct RedRunner setup.

⚠️ IMPORTANT SAFETY NOTICE

You are responsible for securely supporting the sway bar when it is disconnected. Depending on the vehicle and suspension setup, an unsecured sway bar may contact the CV axle or CV boot.

Always secure the sway bar before driving.

You may also disconnect only one side, leaving the opposite link connected to help support the sway bar while providing the same disconnect effect.

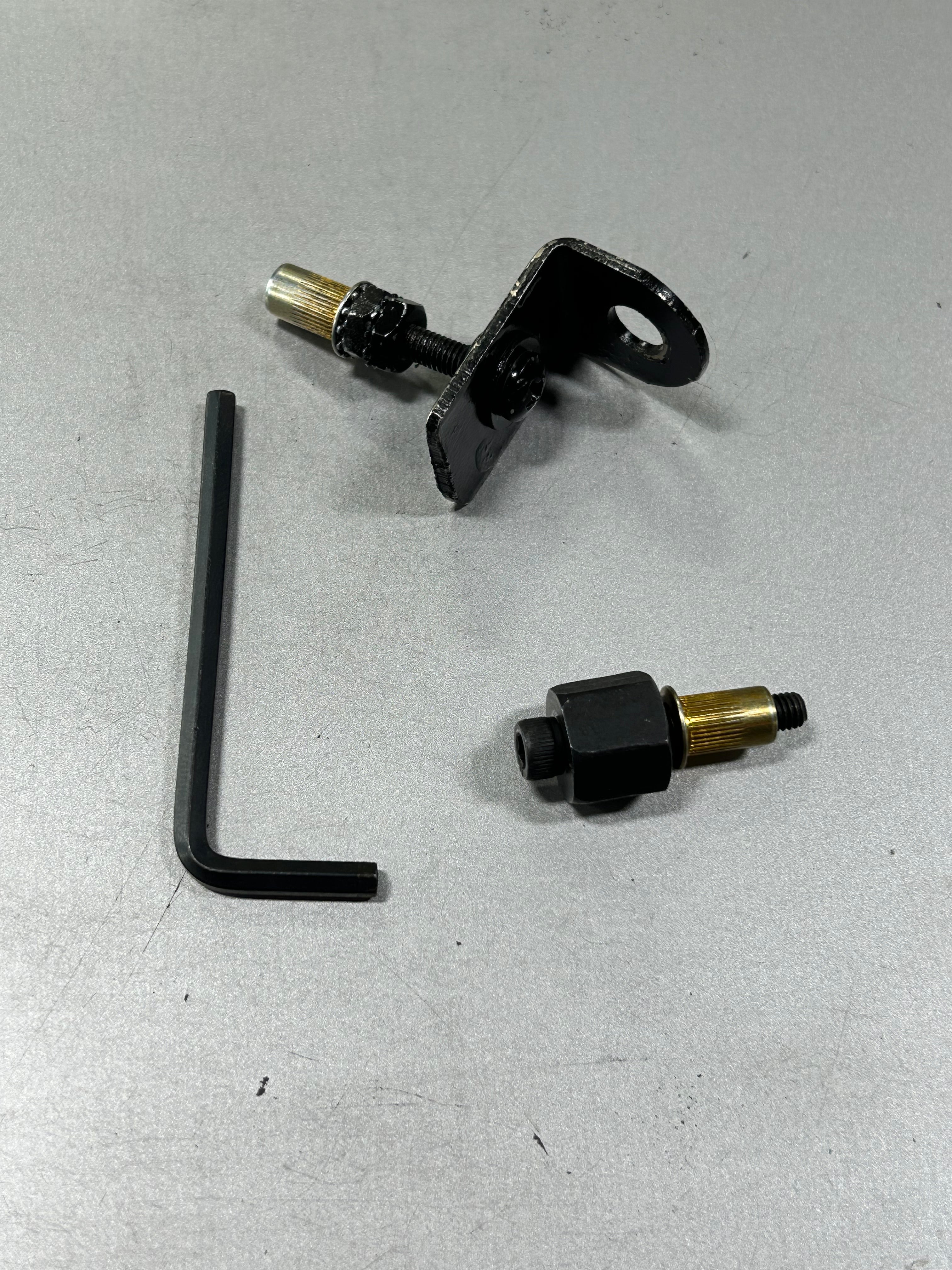

RedRunner Designs Sway Bar Securement Bracket Available Separately

A securement bracket can be added to your order for compatible applications.

💥 One link system. Six length ranges. Two pin sizes. A whole lot of possibilities.

Sold as a PAIR.

Products received may vary slightly from images due to manufacturing tolerances or supply chain variables.
