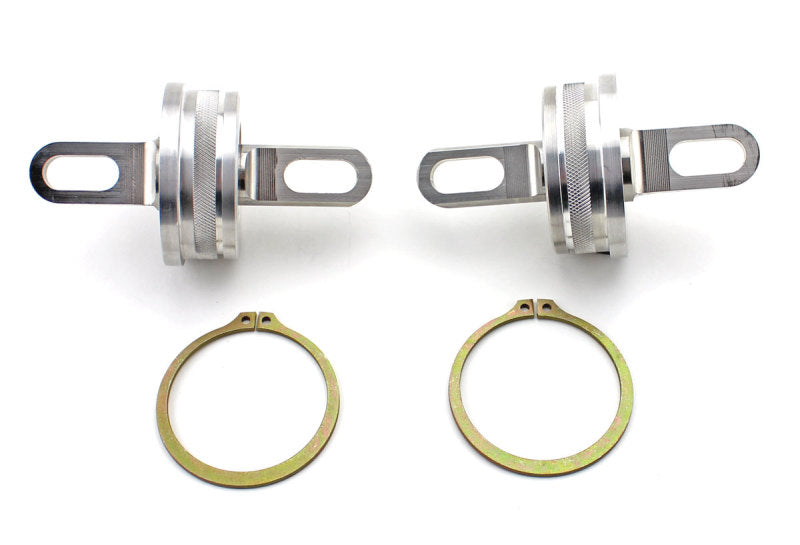

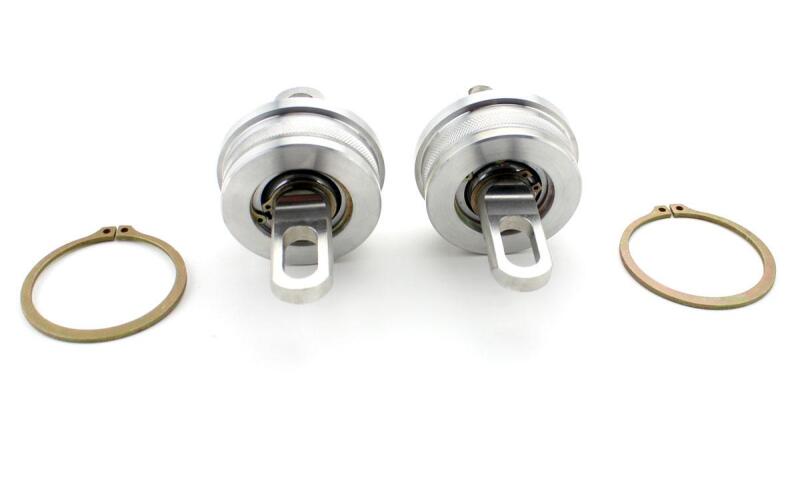

SPL Part Veloster N / Elantra N Rear Trailing Arm Bushings

Hyundai Veloster N / Elantra N rear trailing arm spherical bushings replace the stock flexible rubber bushings with PTFE-lined spherical bearings to eliminate bushing flex and greatly reduce friction. This maintains optimum suspension geometry under load, improving handling, chassis feedback, and greatly improves stability under hard cornering and acceleration. The slotted chassis mounting tabs allow for the RTAB to be adjusted to eliminate binding, which can occur after changing the camber and toe settings.

Benefits

• Eliminates OEM Bushing Deflection and Binding
• Precise Dynamic Geometry, Stability, and Handling
• Adjustable Mounting to Eliminate Bind
• Lightweight, High Strength Construction
• Maintenance-Free, US Made, PTFE-Lined FK Bearings

Materials

• 304 stainless steel sleeves
• 6061-T6 aluminum bearing shells
• FK PTFE-lined spherical bearings (F1 spec, self-cleaning)

Suitable for all uses, from daily driver to race car.

Featured On

Tested, developed, and used on the GenRacer Hyundai TC America race team's winning Veloster N and Elantra N.

Sold as a pair.

Confirmed Applications

2019+ Hyundai Veloster N (JSN)

2022+ Hyundai Elantra N (CN7)

Installation Instructions

SPL RTAB JSN

Products received may vary slightly from images due to manufacturing tolerances or supply chain variables.
