SPL Part Front Tie Rod Ends - Bumpsteer Adjustable GR86/BRZ/GT86/FR-S

FR-S/BRZ/GT86 Front Tie Rod Ends (TRE) allow the tie rod end pivot to be adjusted in 1/8" - 1/4" increments using the provided spacers. This will correct bump steer resulting from modified caster or lower arm geometry. Reducing bump steer can improve lap times, significantly improve stability over bumps and fast transitions, and improve handling predictability. On cars that are lowered significantly, relocating the pivot point will also keep the tie rod end from binding, thereby preventing bind-related damage to the inner tie rods.

Precision CNC-machined, heat-treated 4140 chromoly steel shanks are utilized to handle the abuse of racing and drifting. SPL tie rod ends also feature 304 stainless steel bump steer spacers and black anodized, lightweight 2024-T351 aluminum turnbuckles for corrosion resistance, long-term durability, and increased strength over commonly used 6061-T6. American-made FK rod ends are PTFE lined to deliver long life and smooth operation across a useful range of articulation.

Sold as a pair.

Made in the USA

FR-S/BRZ/GT86 Adjustable Tie Rod Ends Feature:

•    Lightweight, Hollow 2024-T351 Aluminum Turnbuckles

•    Heat-treated Electroless Nickel Plated 4140 ChroMoly Steel Shanks

•    Low-friction PTFE-lined FK Rod Ends

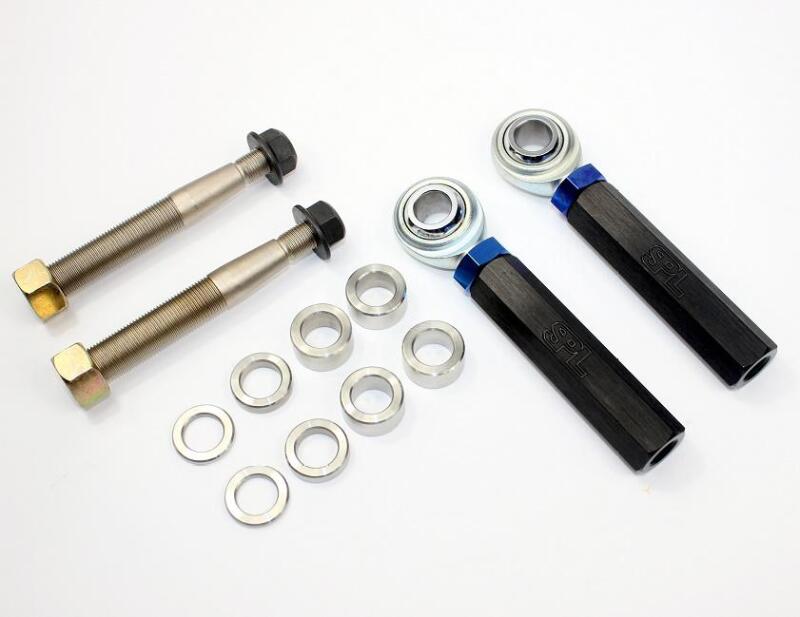

•    1/8" and 1/4" 304-SS Bumpsteer Spacers

Applications:

2013 - 2016 Scion FR-S

2013+ Subaru BRZ (2022+ BRZ uses included spacer)

2017 - 2020 Toyota GT86

2022+ Toyota GR86 (uses included spacer)

Need a Replacement Rod End?

SPL Rod Ends


Installation Instructions:

SPL Tie Rod Ends

Products received may vary slightly from images due to manufacturing tolerances or supply chain variables.
