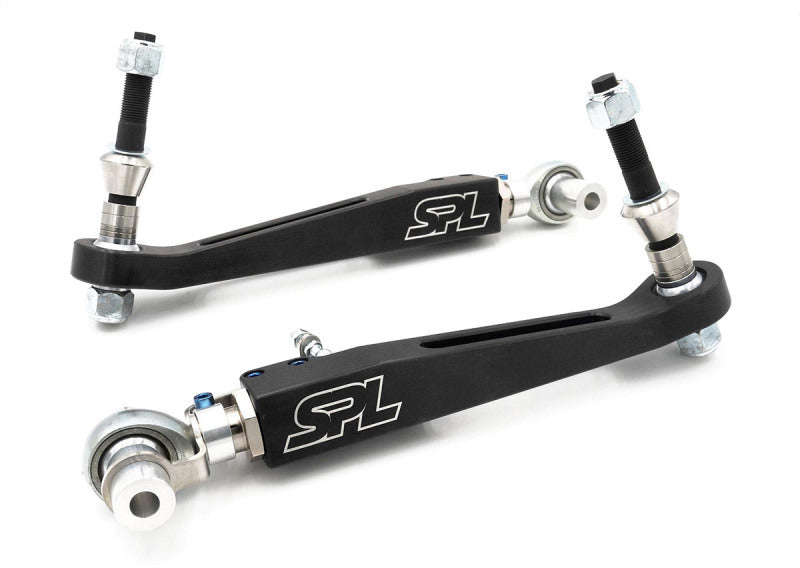

SPL Part BMW E9X/E8X Front Lower Control Arms

BMW E9X/E8X Front Lower Control Arms (FLCA) provide roll center, camber, and track width adjustment for the E9X and E8X BMWs, and allow for full articulation with the proper ball joint angle. The main arm is slotted to allow the use of pinch bolts, and our rotating clamps on SPL Parts' exclusive Double Adjuster lock down camber and track width settings. No more jam nuts!! Long gone are the days of fumbling with multiple wrenches to tighten jam nuts in place while trying to keep your bearings oriented correctly.

Our Double Adjuster is machined from 4130 Chromoly; gun drilled to save weight, then electroless nickel plated for corrosion resistance. Blue Anodized Titanium hardware shaves even more unsprung weight from the arms without compromising strength. Stainless Steel spacers are provided to correct roll center for lowered vehicles. The use of FK Rod Ends and High Misalignment Spherical Bearings eliminates the flex and binding found in the OEM control arms, while allowing smooth articulation.  The street version includes the headlight adjusting rod.

Sold as a pair.

Made in the USA!

SPL Parts BMW E9X/E8X  Lower Control/Trailing Arms Feature:

•    Lightweight 6061-T6 Billet Aluminum and Titanium Hardware
•    Electroless nickel plated 4130 Chromoly Double Adjuster for quick adjustment
•    Correct ball joint angle for full articulation
•    Rotating Clamp design allows for easy access to lock down alignment settings
•    Low friction 3 piece Teflon lined FK sphericals and Heim joints/rod ends
•    Multiple size Stainless Steel roll center spacers for precise adjustment

Applications:

E8X 1 Series BMW M and non M

E9X 3 Series BMW M and non M

**Please note these will not fit xDrive/AWD vehicles**

Need a replacement rod end?

SPL Parts Rod Ends

Installation Instructions:

SPL FLCA E9X

Products received may vary slightly from images due to manufacturing tolerances or supply chain variables.
