Single Joint Rod End - 7/8" Chromoly Heim - 1.5" OD Tubing

50 Caliber Racing Single Joint Rod End Kit - 7/8-14 Chromoly Heim Joint with Bung for 1.5" OD Tubing

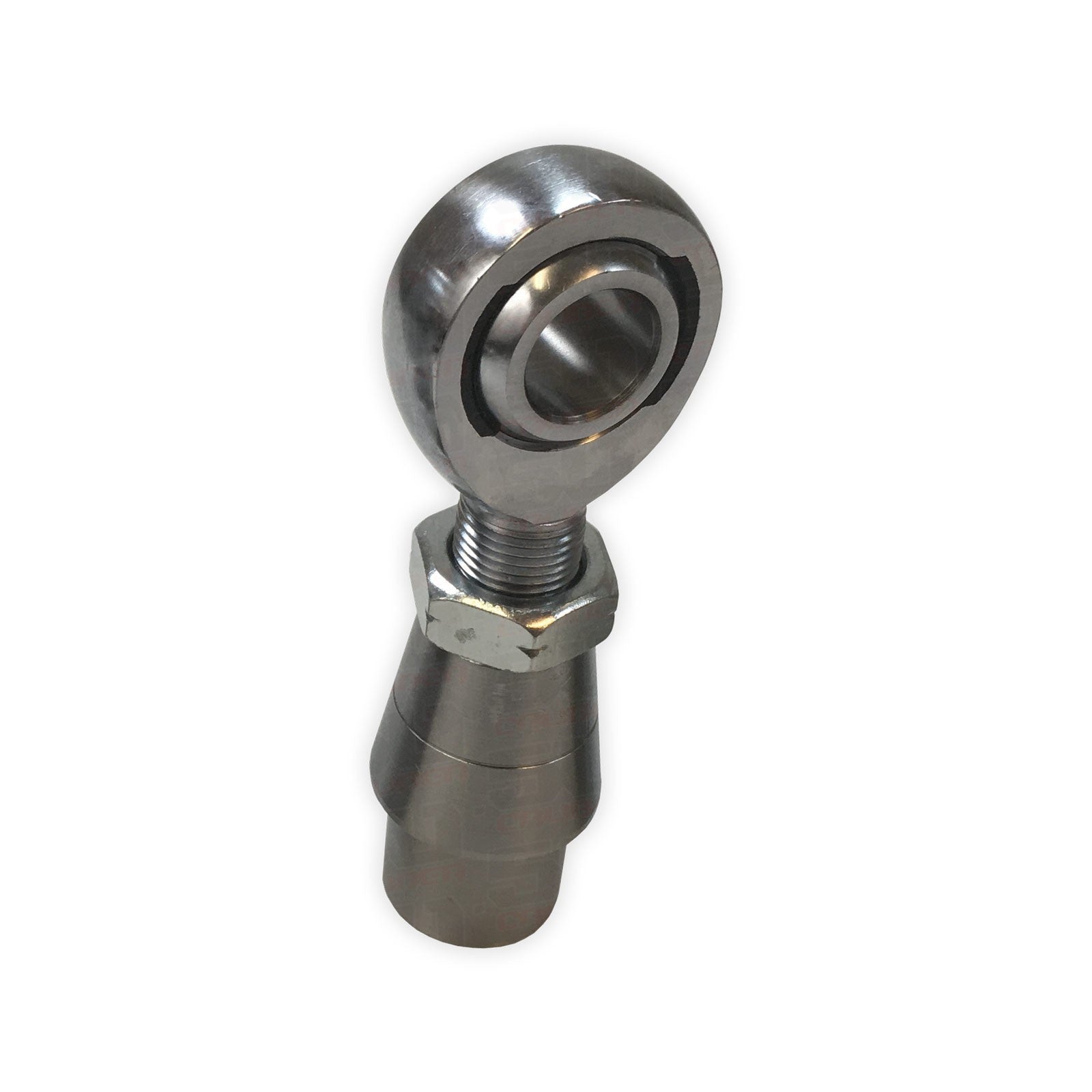

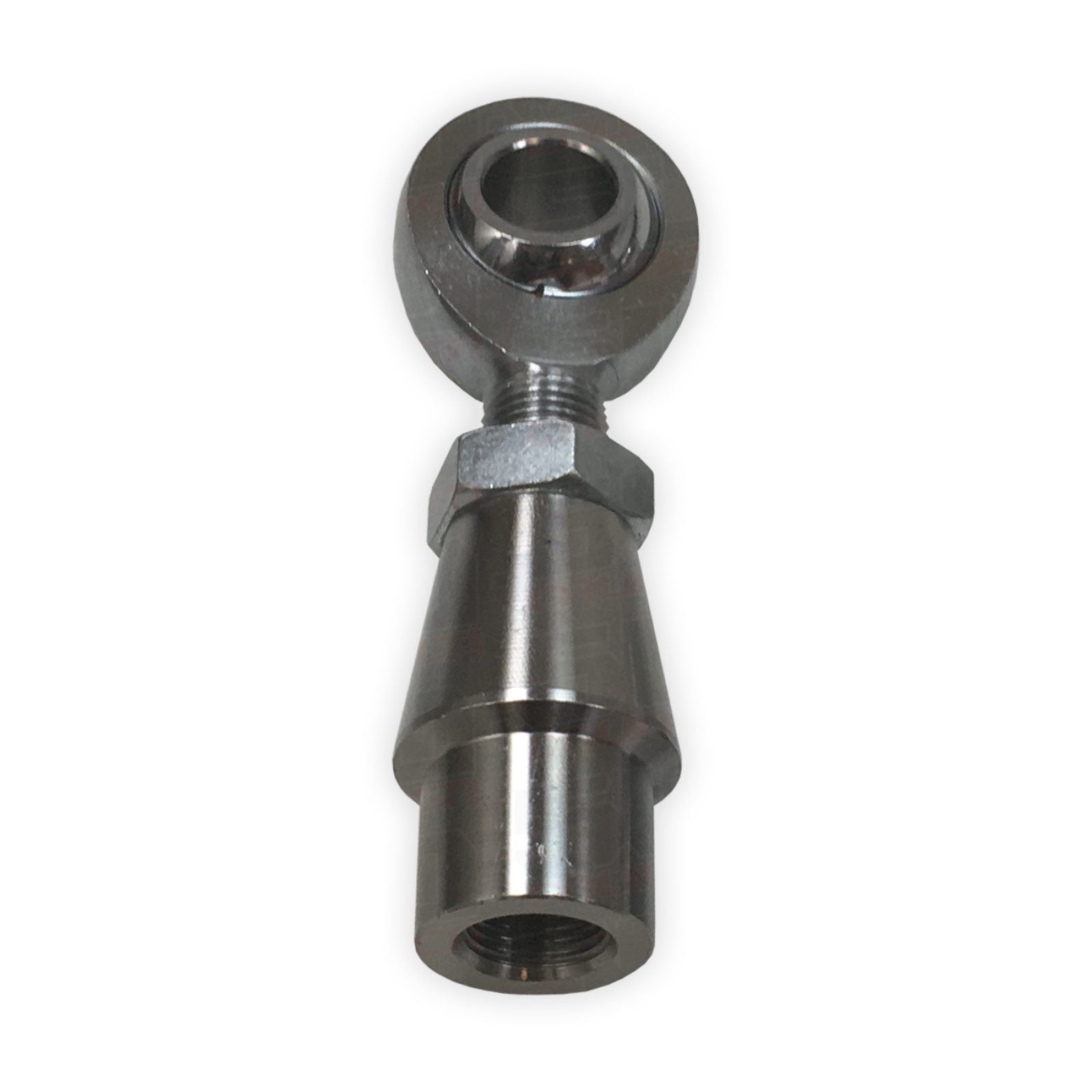

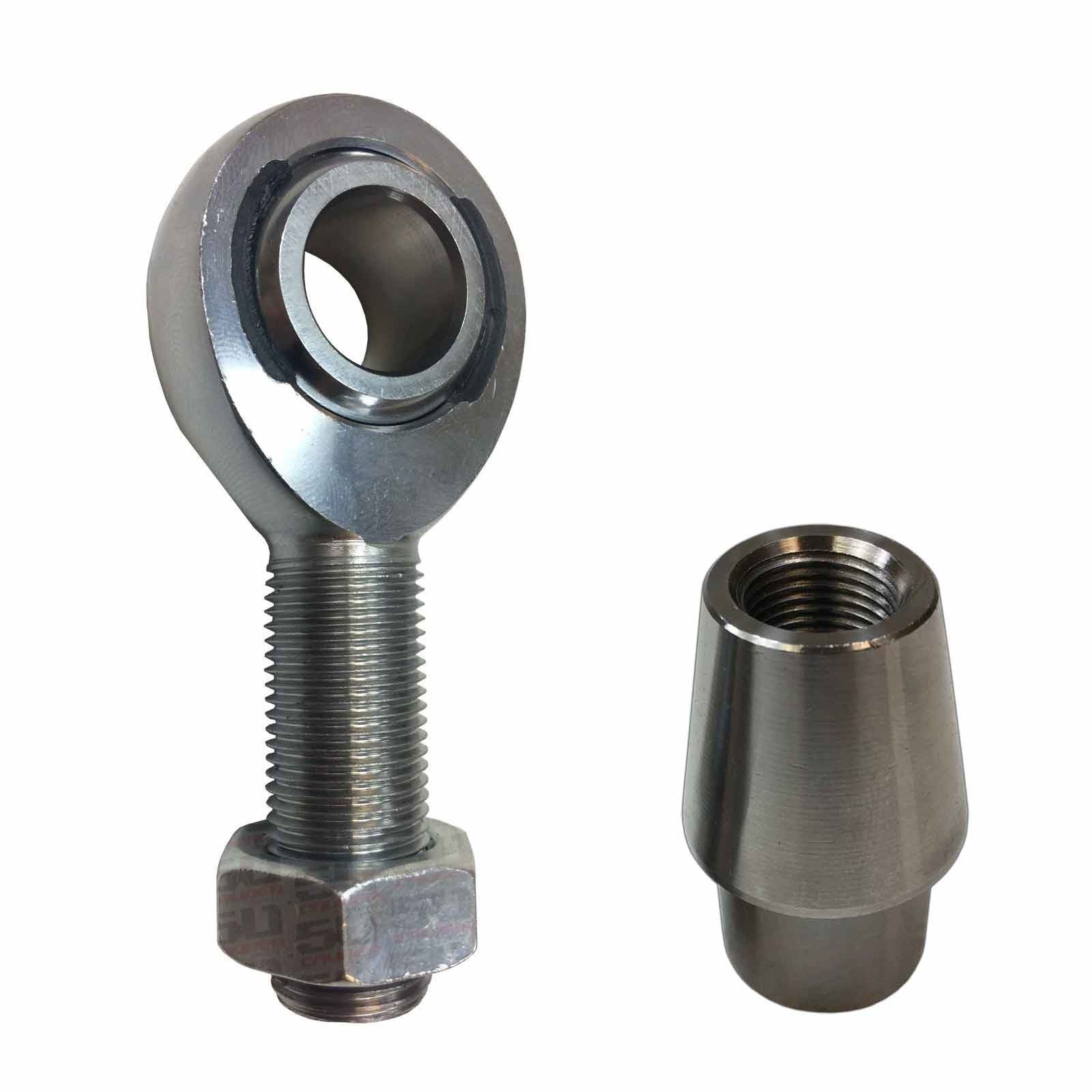

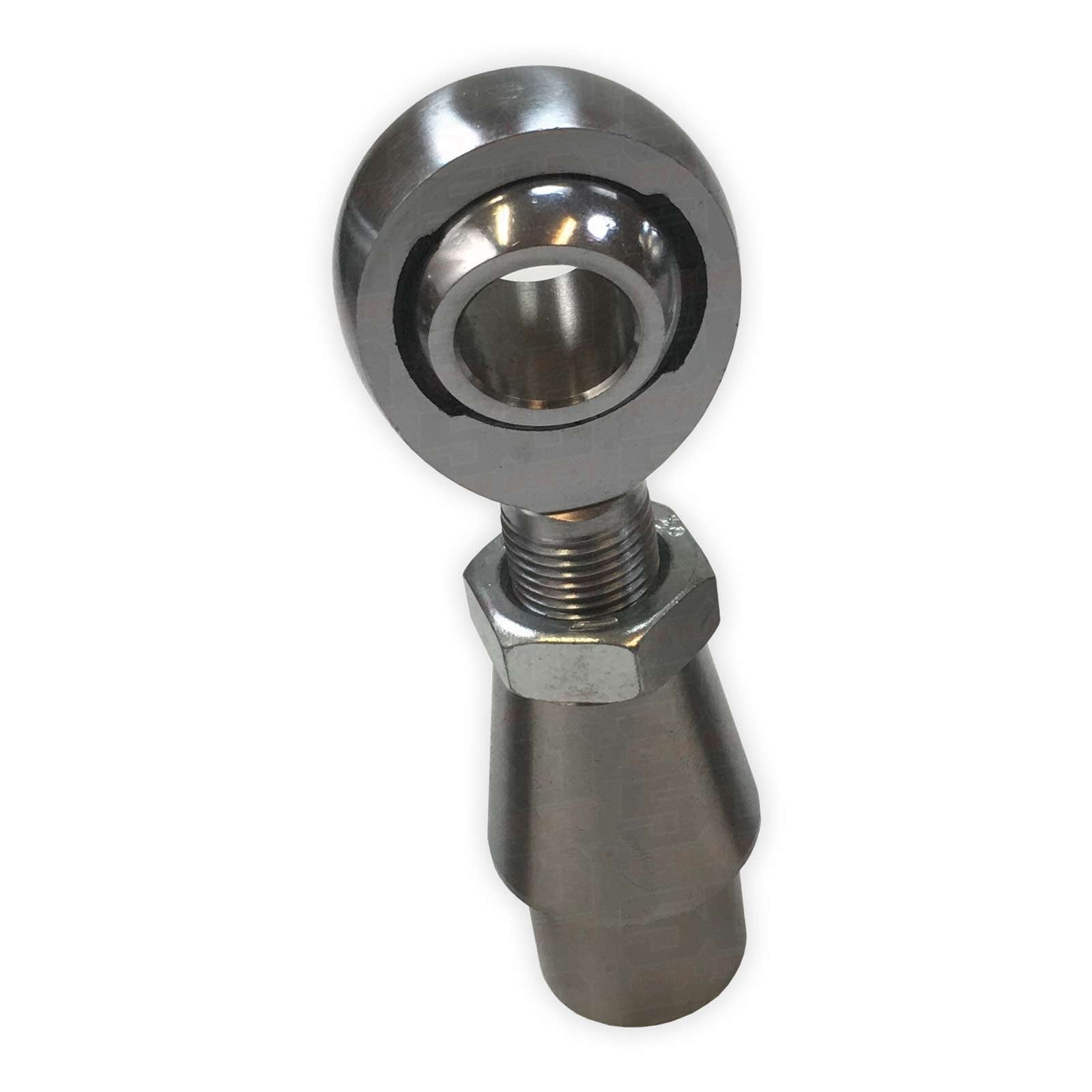

Single joint rod end kit including a 7/8" thread x 7/8" bore heat treated heim joint, jam nut, and a steel weld in bung tube adapter. Designed specifically for 1.5" OD tubing with with wall thicknesses of .120 or .250. Heim joints are made from 4130 Chromoly steel, with a nylon / teflon PTFE liner. The extreme load rating and size make these excellent for building custom steering and suspension links for trucks, 4x4s, rock crawlers, Jeeps, sand rails and more. Includes one heim joint, jam nut, and matching bung. Available with or without high misalignment spacers.

Specifications:

Heim Joints:
- 4130 Chromoly Steel, Nylon / Teflon (PTFE) Liner
- 52100 hardened bearing steel ball
- Static radial load rating: 45,051 lb
- Thread pitch: 7/8"-14
- Thread length: 2.00"
- Bore: 7/8"
- Socket end diameter: 2.00"
- Socket width: .765"
- Ball width: .875"
- Center line length: 3.375"

Bung:
- Thread: Female 7/8"-14
- Material: Chromoly Steel
- Thread Length: Full length
- Choose from 2 different tube sizes:

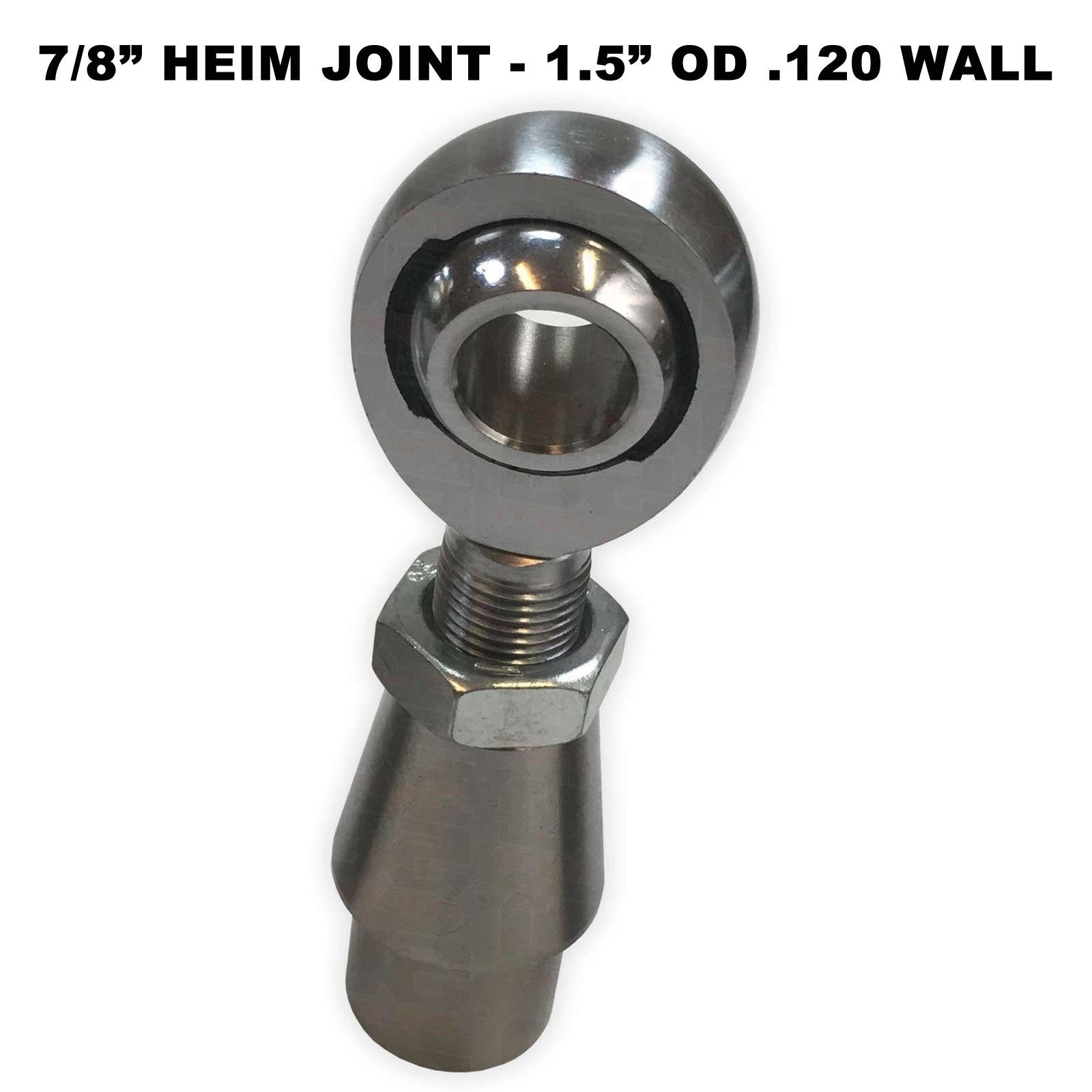

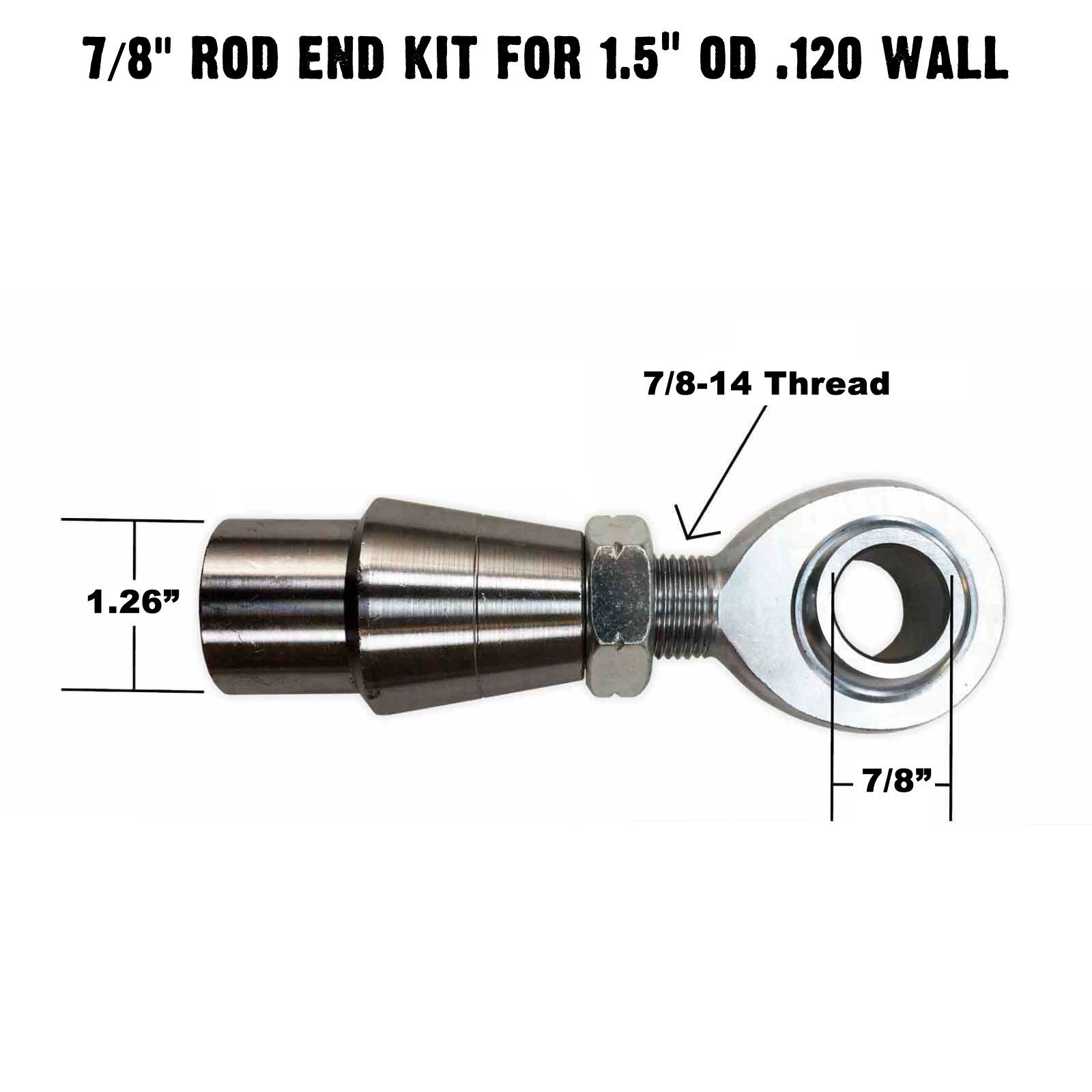

    1.5" OD. x .120 Wall x 1.26" ID

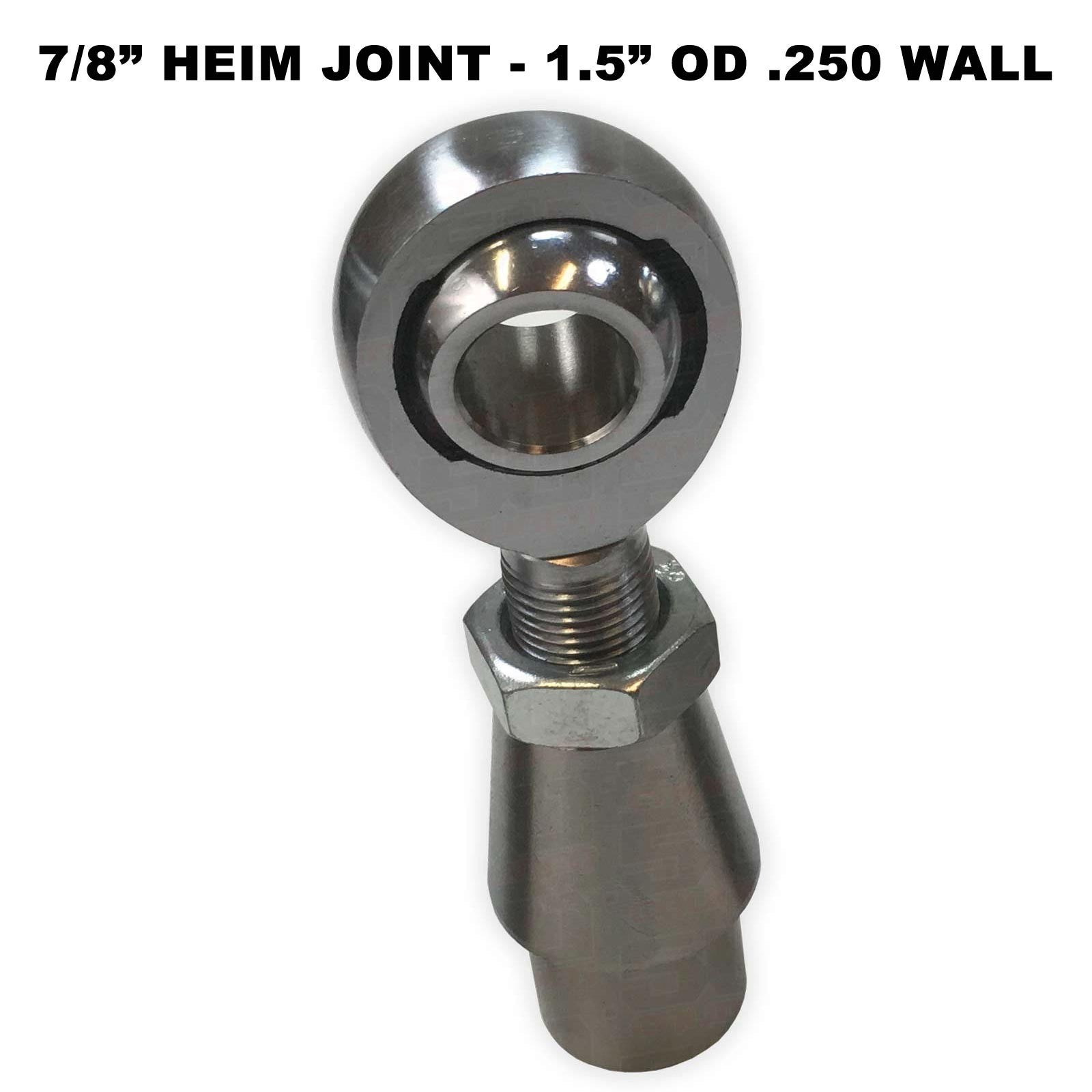

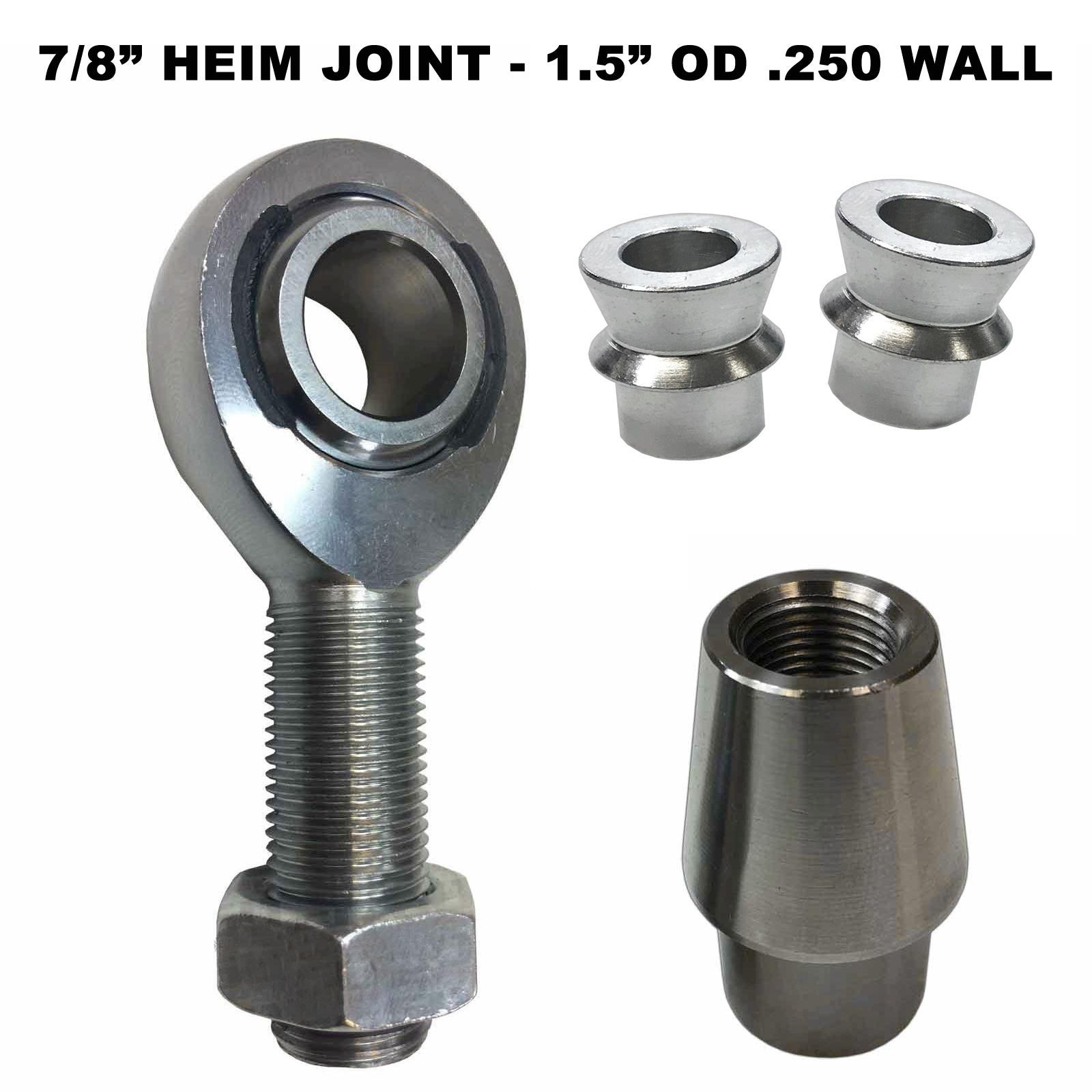

    1.5" OD x .250 Wall x 1.00" ID

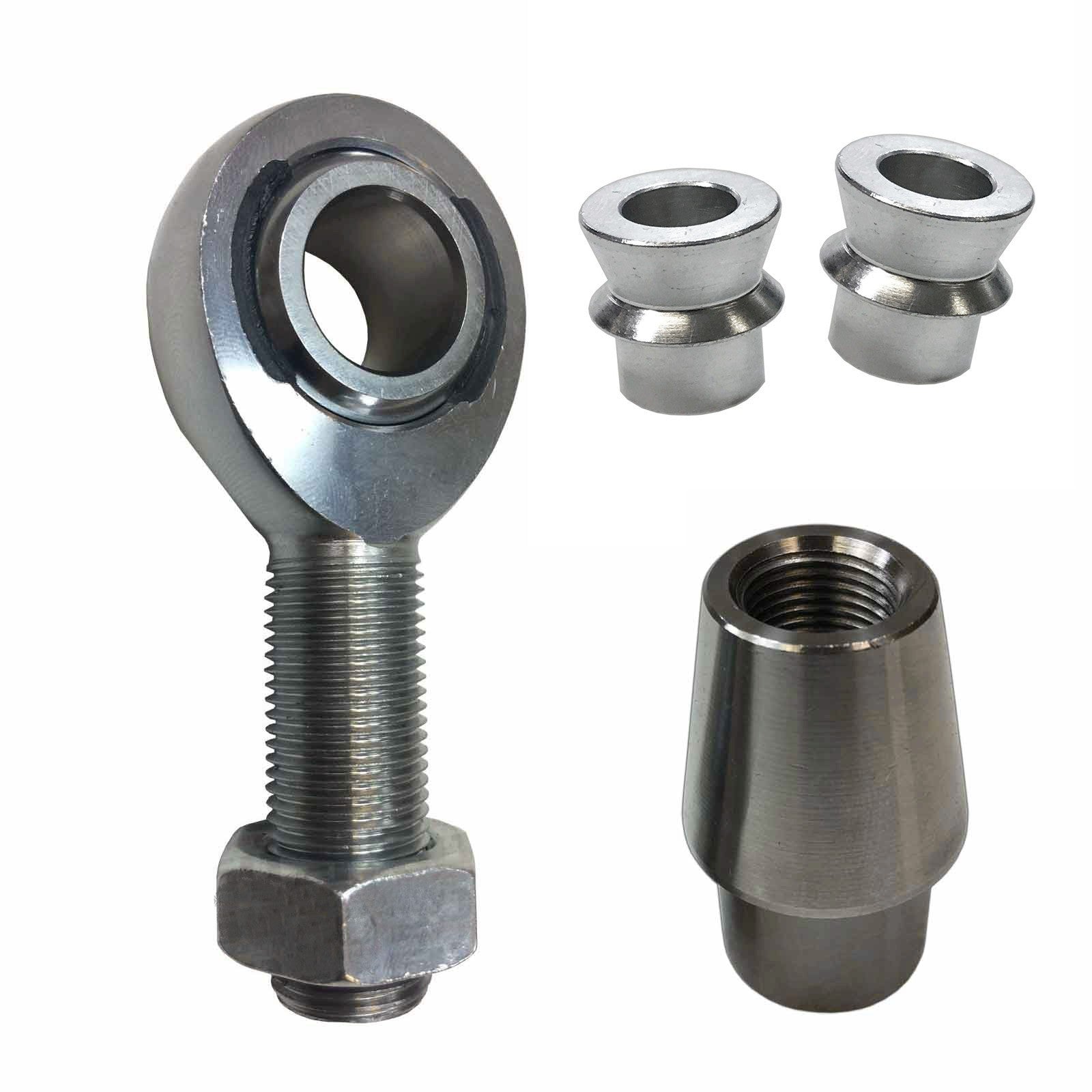

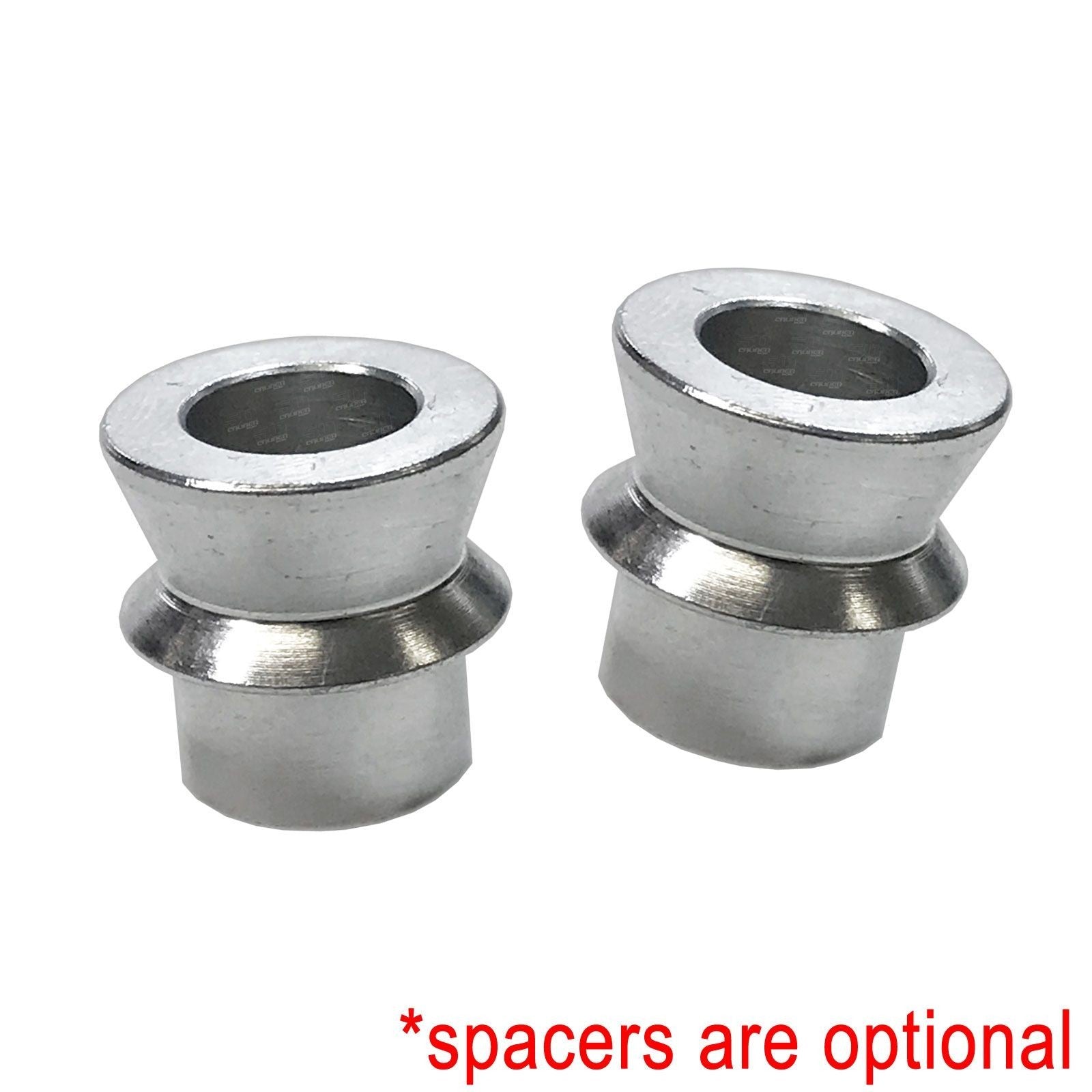

High Misalignment Spacers (optional)
- Material: Chromoly Steel
- Surface finish: Zinc plated
- .750" ID x .869" OD x .926" W
- Compatible with 3/4" bolt size


Perfect for fabricating custom suspension and steering links on your 4x4, rock crawler, sand rail, hot rod, Jeep and more!

- Panhard bar / Trackbar
- Drag link
- Hi steer components
- Radius rods
- Sway bar links
- Tie rods
- Control arms
- 3 Link / 4 Link
- Custom Mounts

Products received may vary slightly from images due to manufacturing tolerances or supply chain variables.
