JDM OBD1 Socket Kit

This DIY socket kit includes everything you need to socket your JDM (square) OBD1 Honda/Acura ECU, allowing you to install and swap EEPROM chips or emulators for tuning. Ideal for enthusiasts who want to perform their own ECU modifications at home.

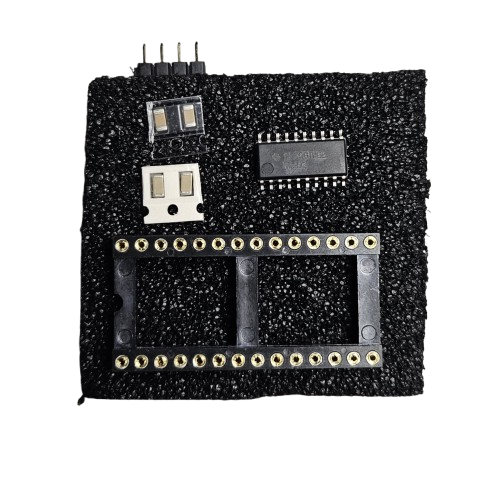

Included in the Kit

• 28‑pin socket (your choice of style)
• 4‑pin CN2 datalog header
• SMD IC latch (74HC373)

Socket Style Options

Choose the socket style that best fits your setup:

• Machine Socket – Common for emulator boards (CobraRTP, Demon2, & more)
• Leaf Socket – Works with standard EEPROM chips (commonly used for basic tunes)
• Header – Required for Hondata S300v3 and similar boards that use pin headers
• ZIF (Zero Insertion Force) Socket – Ideal for frequent chip swapping without wear

Verify which style your tuning solution requires before ordering.

Notes

• Compatible with JDM (square) 1992–1995 OBD1 Honda/Acura ECUs (P30, P72, P75, etc.).
• Installation requires soldering (surface mount) and basic electronics knowledge.
• Professional installation is recommended if you are unfamiliar with ECU modification.
• We also offer pre‑socketed ECUs and installation services for customers who prefer a ready‑to‑use solution.

Products received may vary slightly from images due to manufacturing tolerances or supply chain variables.
