Godzilla 6R80 Control Pack - 7.3L 6r80

Godzilla 7.3L to 6r80 Automatic Control pack is finally here!

Kit comes complete with the Following parts-

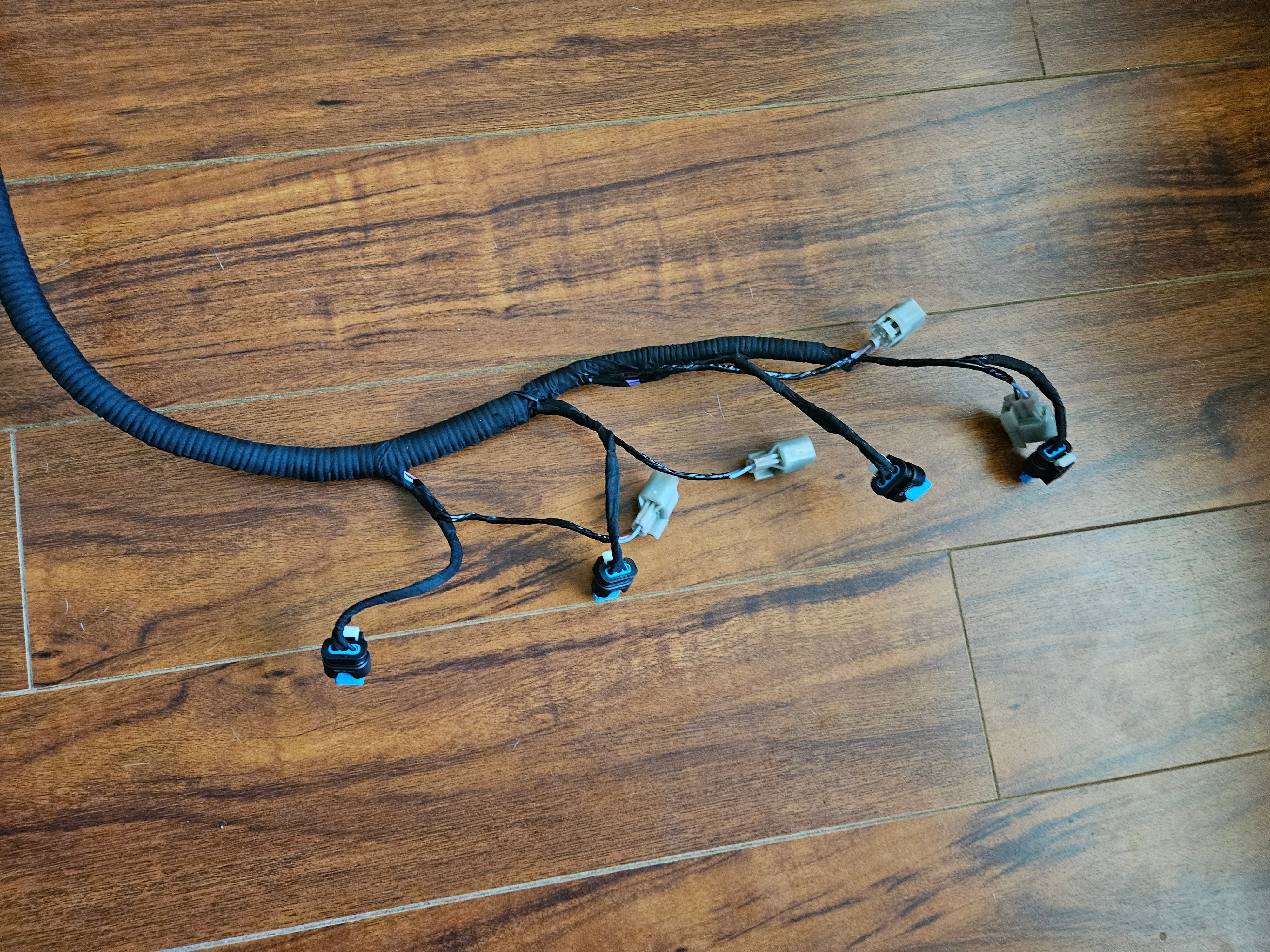

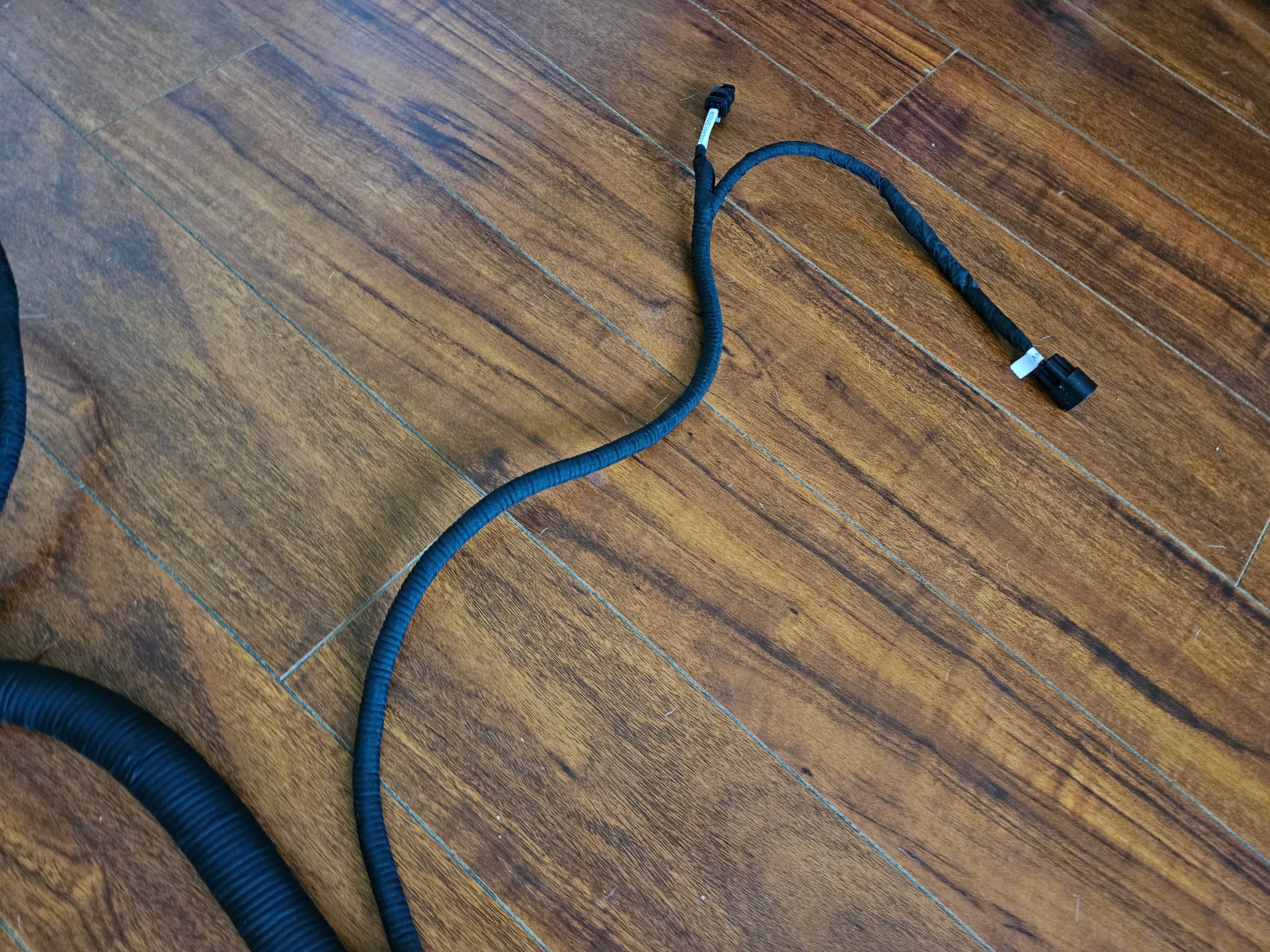

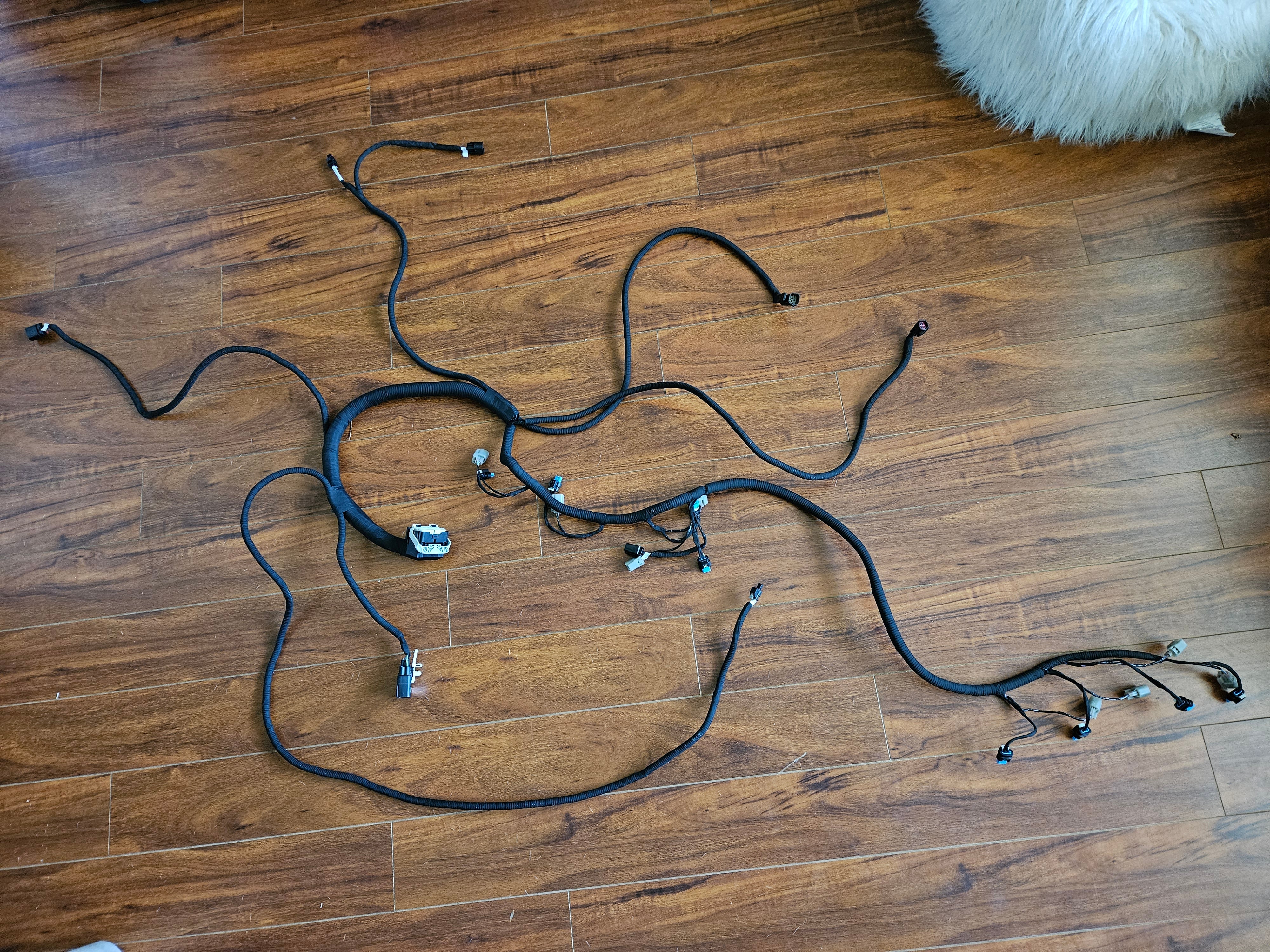

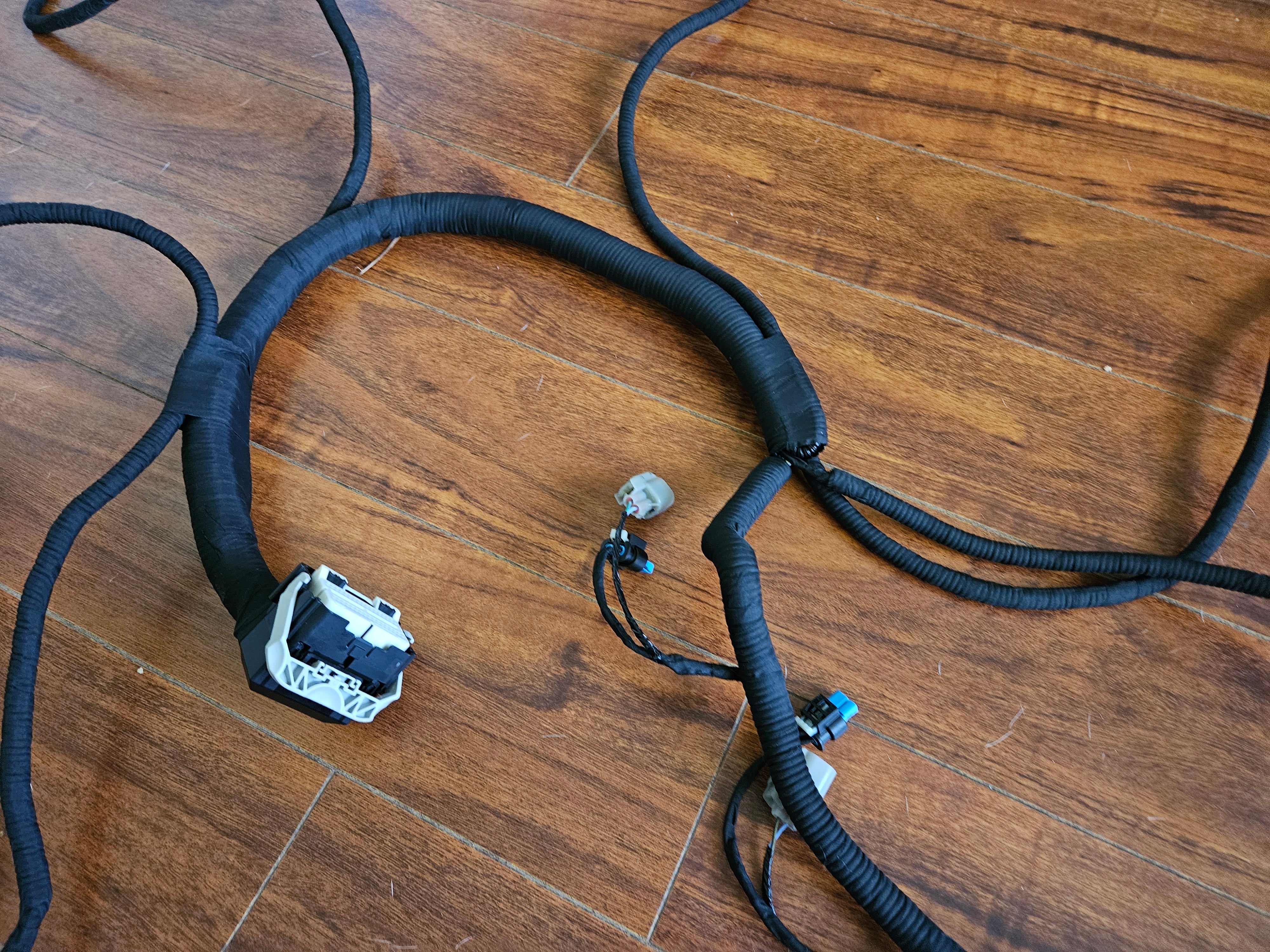

Engine harness (must use 20-22 Ignition Coils)

Body Harness (fuse box, ignition, fan, fuel pump wiring)

Transmission Harness (stripped down, no battery cables, works with both 4x4 and 2wd)

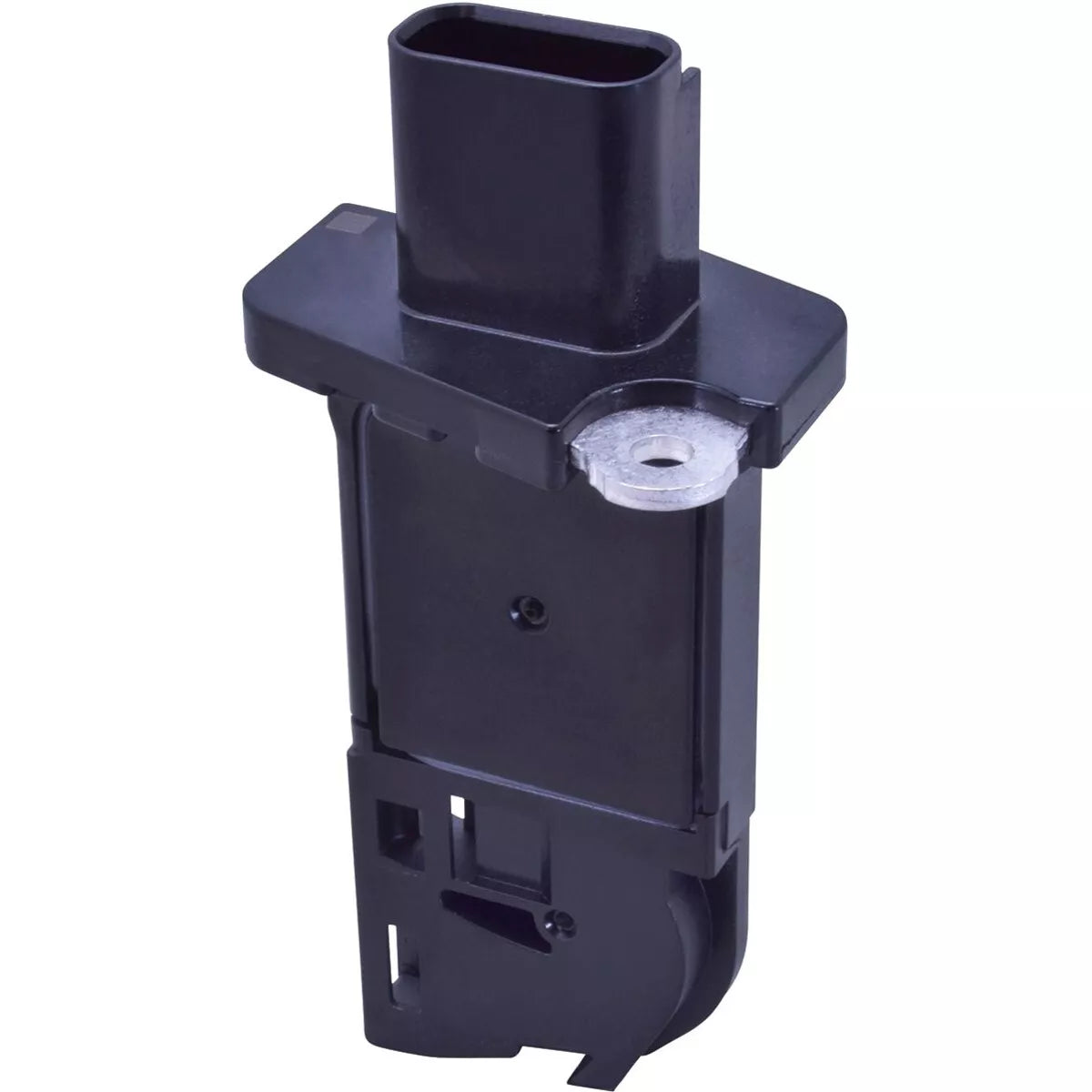

Mass Air Flow Sensor

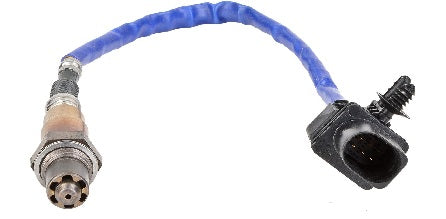

(2) Front Upstream 02 Sensors

Gas Pedal

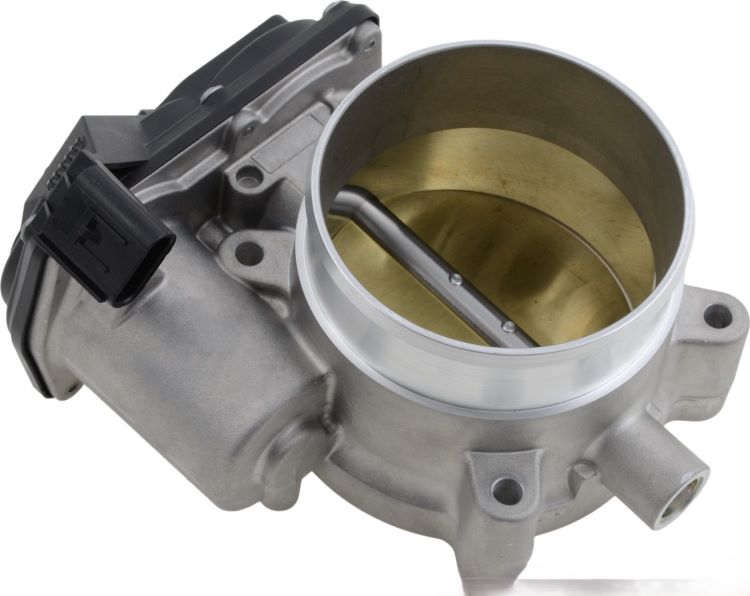

Electronic Throttle Body 80mm

Crank Sensor

Crank Trigger Wheel

Cam Sensor

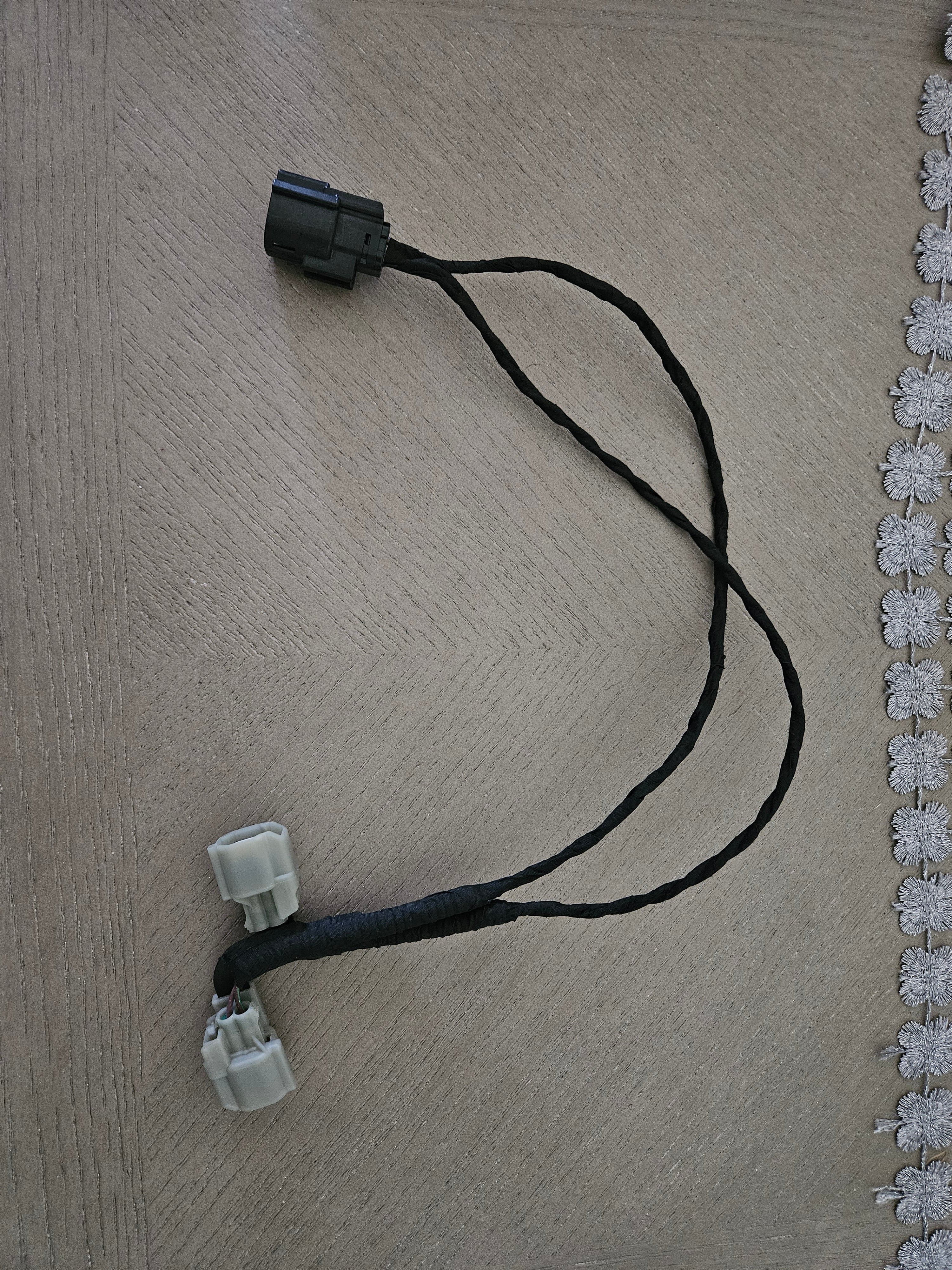

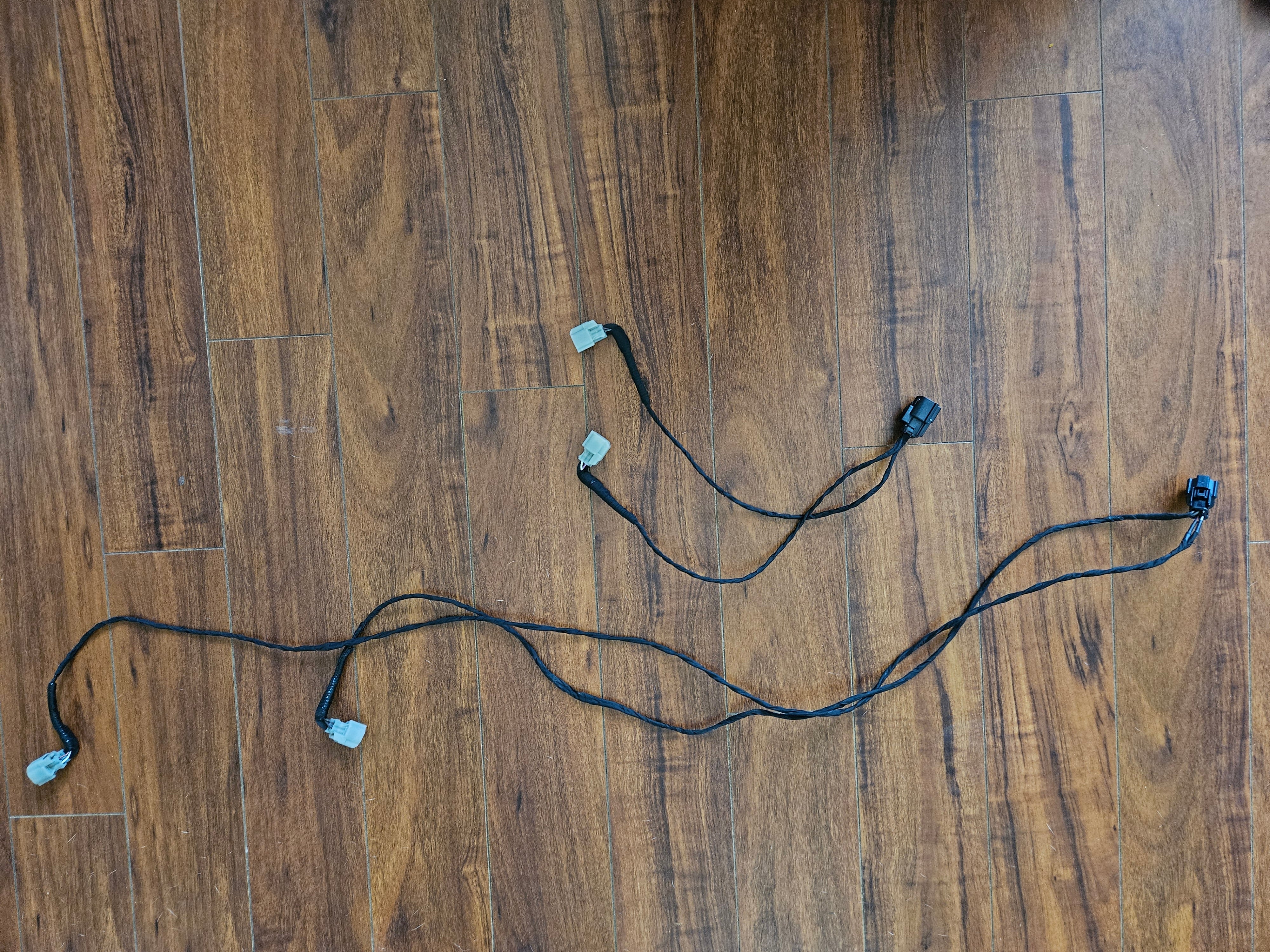

Knock Sensor Harness

PATS Off ECU-(security/anti theft disabled ECU)  No base Tune but can be added for additional!

Requires the use of the supplied throttle body. If you need an adapter from your AFTERMARKET Godzilla manifold please reach out and i can get you the correct one.

The Variable OIl Pressure works, as well as the VCT from the supplied cam sensor. The Knock sensors also work. Only 2 of the knock sensors will be used. Can use the Front or the Rear but will need to tell the tuner which set you are using. I will offer an extended knock harness for anyone using the front knock sensors instead of the rear.

Works with all 2020+ 7.3L Godzilla Engines. Must use 20-22 Ignition Coils. Must use 2011-2014 6r80 6.2L or 5.0L Transmission. Can also use 2015-17 6r80 but will need to swap valve body to the earlier version if you experience shifting issues.

Engine harness is labeled and easy to install. Plug and Play

Custom Tuning will be required. I HIGHLY Recommend using OZTUNING as he was part of the engineering of making this harness and computer work for this combination.

OZ Tuning Website Link -- https://oztuning.com/

The engine harness are hand made in house so please allow 7-10 Days to build due to volume.

Products received may vary slightly from images due to manufacturing tolerances or supply chain variables.
