CP-Carrillo Automotive Piston, Each, Cyl: 1, Material ID: 503 0DEQD
Shipping calculated at checkout.

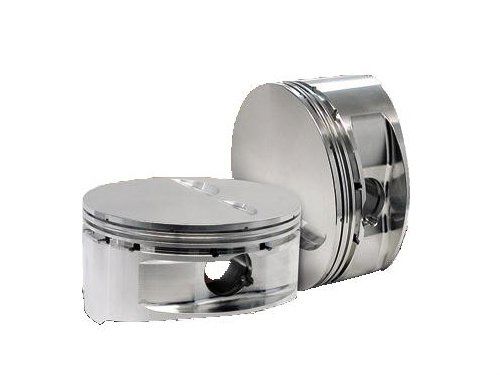

Small Block Chevy LS1 Piston
- SBC LS1 Flat Top & Dish
- Designed on X-style forging to clear reluctor wheel
- Fit LS1, LS2 and LS6 heads
- Designed for shorter wrist pins
- Pinfitting included at no cost
- Chamfered pins and wire locks included
- Accumulator and anti-detonation grooves included
- Designed for back-cut rings
- Double pin oilers, force fed from oil ring
- Pick lock grooves for easy lock removal
- Custom skirt cam and barrel shapes
- Supplied with Wire Locks and 927×2.250 Pin (106g)
- CP Pistons are priced and sold per piston. 8 Cylinder engines will require Quantity 8 of each part #.
- Individual CP Piston 23Degree Dome Supplied With Double Spiral Locks .010 Deck Clearance with 3.480 Stroke Supplied with .927 x 2.750 Pin (130g)
- 2nd Ring: 1/16
- Bore: 4.030
- Comp Height: 1.550
- Dome VR CC: .450 Dome +13cc
- Gas Ports: No
- Oil Ring: 3/16
- Rod: 5.700
- Stroke: 3.500
- Top Ring: 1/16
- Weight: 482
Products received may vary slightly from images due to manufacturing tolerances or supply chain variables.
