CP-Carrillo Automotive Piston, Each, Cyl: 1, Material ID: 2746 0DEUK
Shipping calculated at checkout.

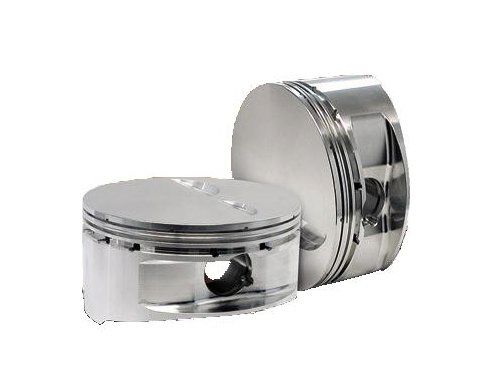

Small Block Chevy LS1 Piston
- SBC LS1 Flat Top & Dish
- Designed on X-style forging to clear reluctor wheel
- Fit LS1, LS2 and LS6 heads
- Designed for shorter wrist pins
- Pinfitting included at no cost
- Chamfered pins and wire locks included
- Accumulator and anti-detonation grooves included
- Designed for back-cut rings
- Double pin oilers, force fed from oil ring
- Pick lock grooves for easy lock removal
- Custom skirt cam and barrel shapes
- Supplied with Wire Locks and 927×2.250 Pin (106g)
- CP Pistons are priced and sold per piston. 8 Cylinder engines will require Quantity 8 of each part #.
- Individual CP Piston 18Degree Dome Rail Supports included Supplied With 927 x 2.750 Pin (130g) Supplied with Wire Locks
- 2nd Ring: 1.5
- Bore: 4.155
- Comp Height: 1.100
- Dome VR CC: .175 +2.5cc
- Gas Ports: Yes
- Oil Ring: 3.0
- Rod: 6.000
- Stroke: 3.800
- Top Ring: 1.5
- Weight: 463
Products received may vary slightly from images due to manufacturing tolerances or supply chain variables.
