CP-Carrillo Automotive Piston, Each, Cyl: 1, Material ID: 1377 0DEP9
Shipping calculated at checkout.

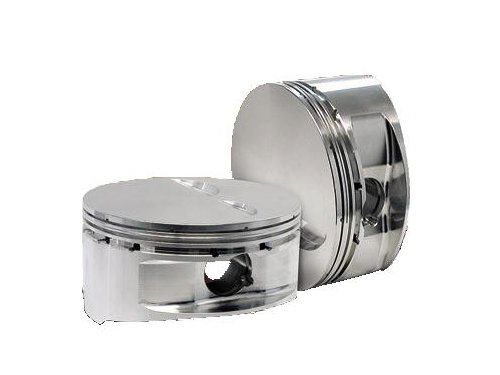

Small Block Chevy LS1 Piston
- SBC LS1 Flat Top & Dish
- Designed on X-style forging to clear reluctor wheel
- Fit LS1, LS2 and LS6 heads
- Designed for shorter wrist pins
- Pinfitting included at no cost
- Chamfered pins and wire locks included
- Accumulator and anti-detonation grooves included
- Designed for back-cut rings
- Double pin oilers, force fed from oil ring
- Pick lock grooves for easy lock removal
- Custom skirt cam and barrel shapes
- Supplied with Wire Locks and 927×2.250 Pin (106g)
- CP Pistons are priced and sold per piston. 8 Cylinder engines will require Quantity 8 of each part #.
- Individual CP Piston Supplied with .927 x 2.500 Pin (118g). For 1200 series optional 98g pin available Supplied With Double Spiral Locks .010 Deck Clearance with 3.480 Stroke
- 2nd Ring: 1.5
- Bore: 4.060
- Comp Height: 1.250
- Dome VR CC: F.T. -5cc
- Gas Ports: No
- Oil Ring: 3.0
- Rod: 6.000
- Stroke: 3.500
- Top Ring: 1.5
- Weight: 389w/ 2.020/1.600 Valve Milled Head
Products received may vary slightly from images due to manufacturing tolerances or supply chain variables.
