Comp Cams Valve Spring Locator;16 Pieces;I.D. Spring Locators

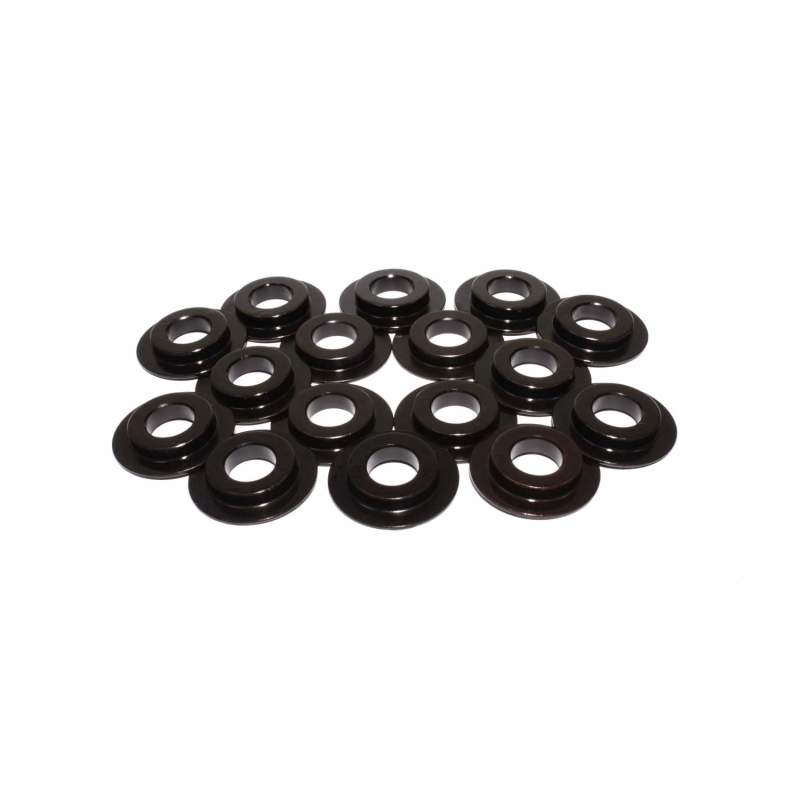

Complete Set of (16) I.D. Spring Locators

The older style standard shims will not hold up to the extreme spring pressures and high RPM found in racing engines being built today. COMP Cams® offers a simple but effective solution to this problem − a thin, hardened steel alloy seat which will not only protect the head and shim but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP® now offers I.D. locators with the locating shoulder on the inside. Many sizes are available to locate from the inside or outside diameter.

Features:

• Properly Locates Springs w/ Stock Size GM LS .500" Valve Guides

• Designed for COMP™ Beehive™ & Conical Valve Springs

Specifications

O.D: 1.300"

I.D: .520"

Thickness: .045"

Spring I.D.: .875"

Products received may vary slightly from images due to manufacturing tolerances or supply chain variables.
