Chromoly Triple Shear Swing-Out Door Bar Kit

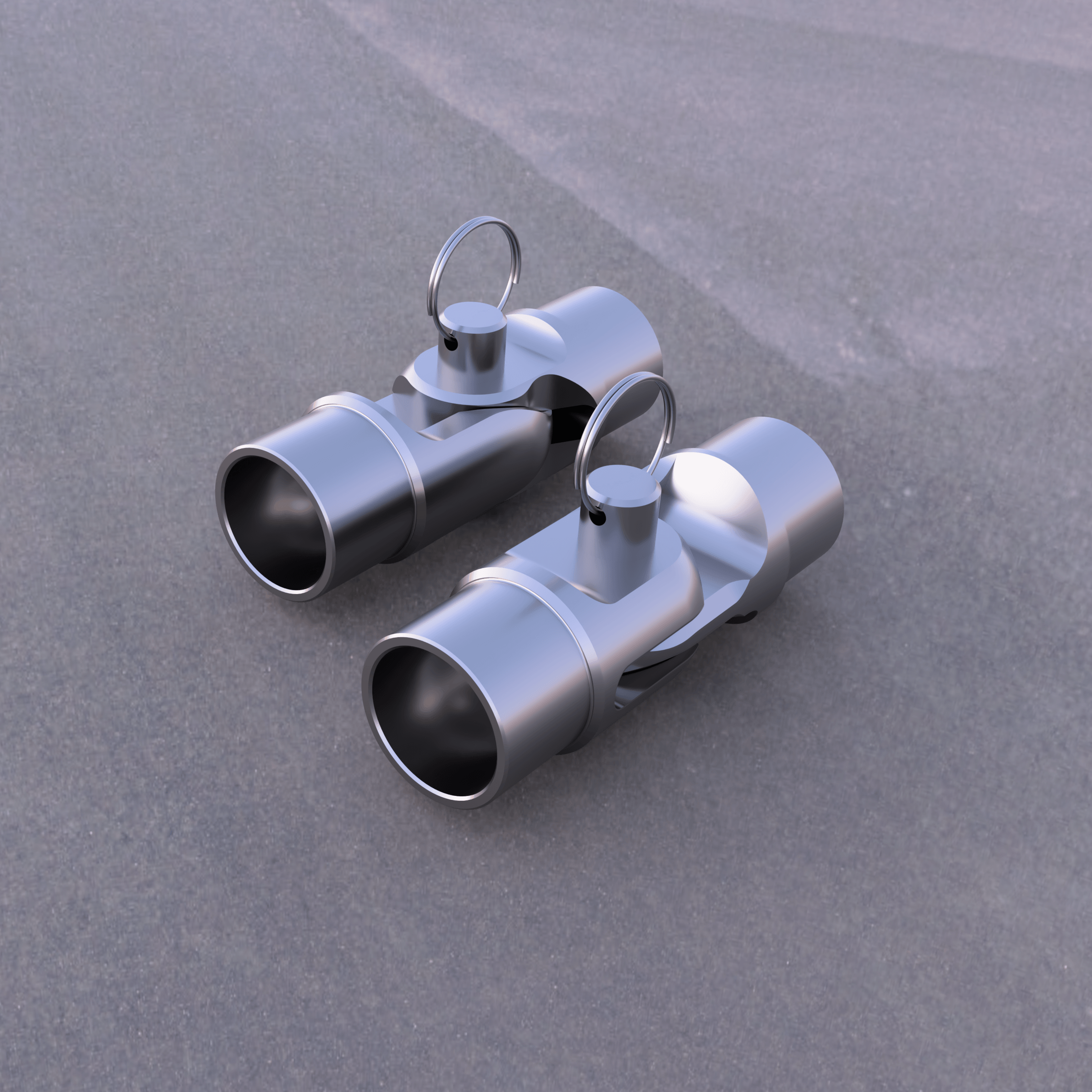

PMR Triple Shear Chromoly Swing-Out Door Bar Kit

Upgrade your race car’s safety, strength, and accessibility with the PMR Triple Shear Swing-Out Door Bar Kit—precision-built, race-ready, and proudly Made in the USA. Designed for fabricators and racers who demand exceptional durability and smooth operation, this kit delivers the highest level of quality and reliability.

Key Features

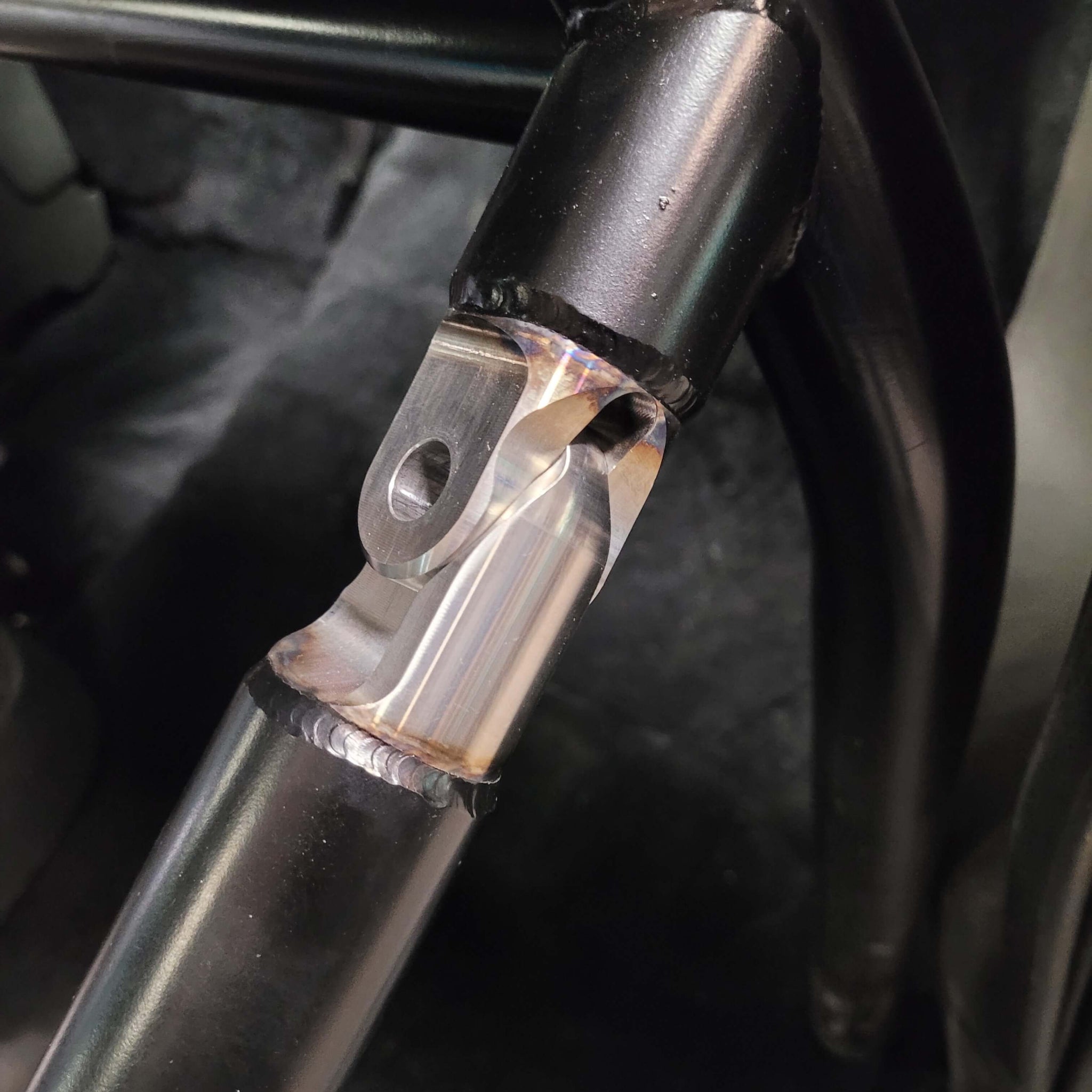

• Triple Shear Swing-Out Design Engineered from 4130 chromoly steel for maximum strength and stability, offering a secure swing-out function while maintaining structural integrity in high-stress race environments. This unique design spade will help to take time and energy out of your swing-bar project. The spades fit with our mating Stop Clevises to provide a swing or catch joint you'll be proud of. The precision contour fit between the two components also provides assistance to a bolt or pin that could shear under stress.
• Complete Swing-Out System Includes a precision release pin for easy entry and exit, ensuring consistent, confident engagement every time.

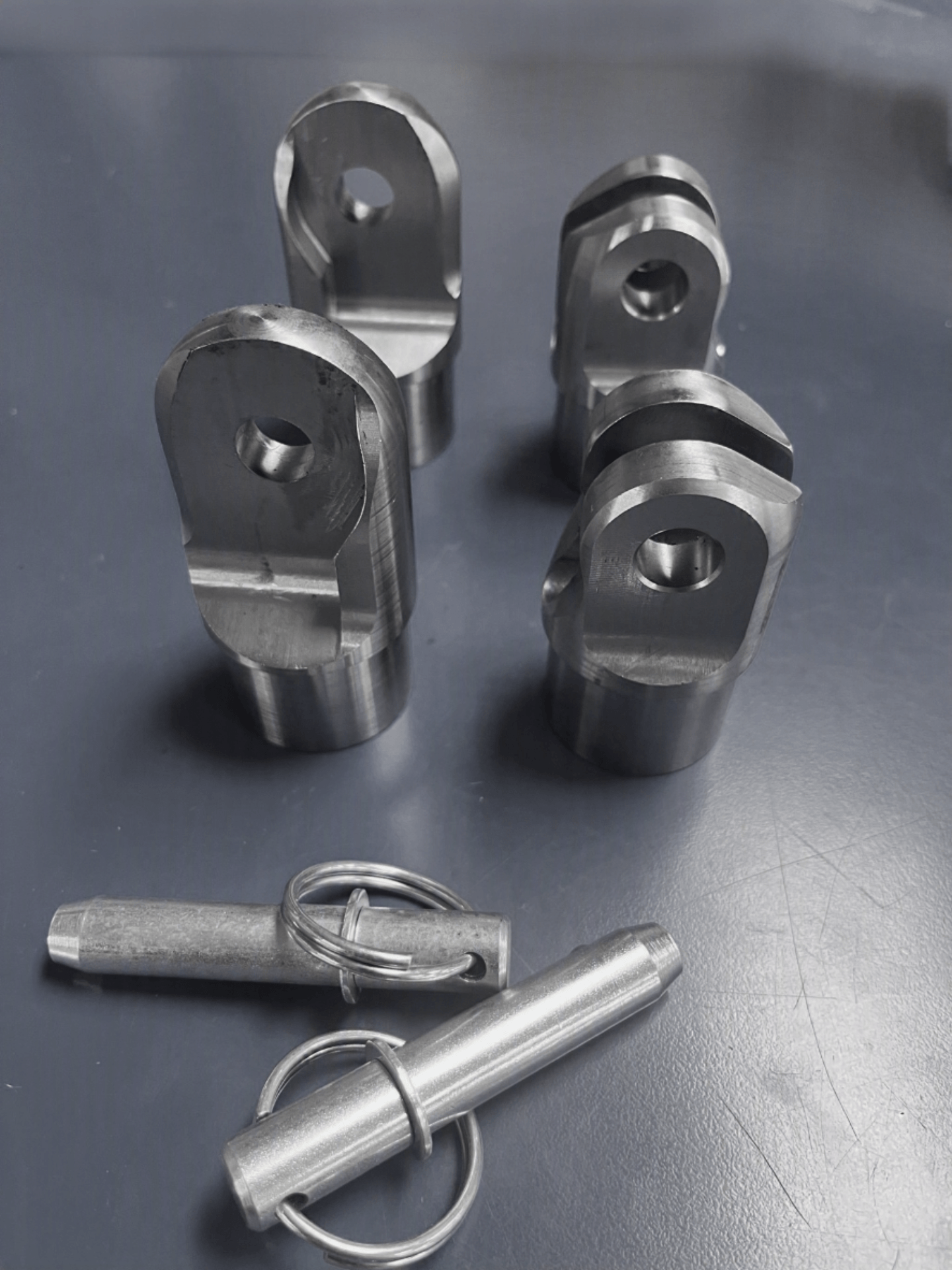

• Premium USA-Made Clevis Hardware Comes with two male clevises and two female clevises, all manufactured in the United States for optimal strength, alignment, and longevity.
• Built for 1.625” Tubing Designed to fit 1.625-inch diameter tubing with 0.083-inch wall thickness, making it ideal for standard roll cage construction.
• Durable 3/8” Slot Construction
  Features a precision-cut 3/8-inch slot that ensures a clean, snug fit and dependable performance under race conditions.

Made in the USA Quality

Every component of the PMR Triple Shear Swing-Out Door Bar Kit is proudly produced in the United States, using high-quality materials and tight machining tolerances. This ensures superior durability, excellent fitment, and reliability you can count on—on and off the track.

A kit provides all necessary parts for one single door

It is the customer’s responsibility to ensure the kit is installed correctly and meets all certification requirements for their racing sanctioning body.

Products received may vary slightly from images due to manufacturing tolerances or supply chain variables.
