Brake Caliper Guide Bushing Set - Street

$89.99
Shipping calculated at checkout.

Our brass bushings eliminate caliper twisting caused by the rubber guide pin bushings. Precision machined brass guide bushings, and Military grade retaining clips allow your calipers to squeeze evenly on both sides of the brake rotor, resulting in much longer pad life, and more consistent brake pedal feel. We've extended the length of the guides to make room for a heavy-duty rubber dust cap. This cap is designed to help protect the guide pin lubricant from dust and debris and will extend interval of guide pin lubrication.

Guide pins require periodic lubrication.

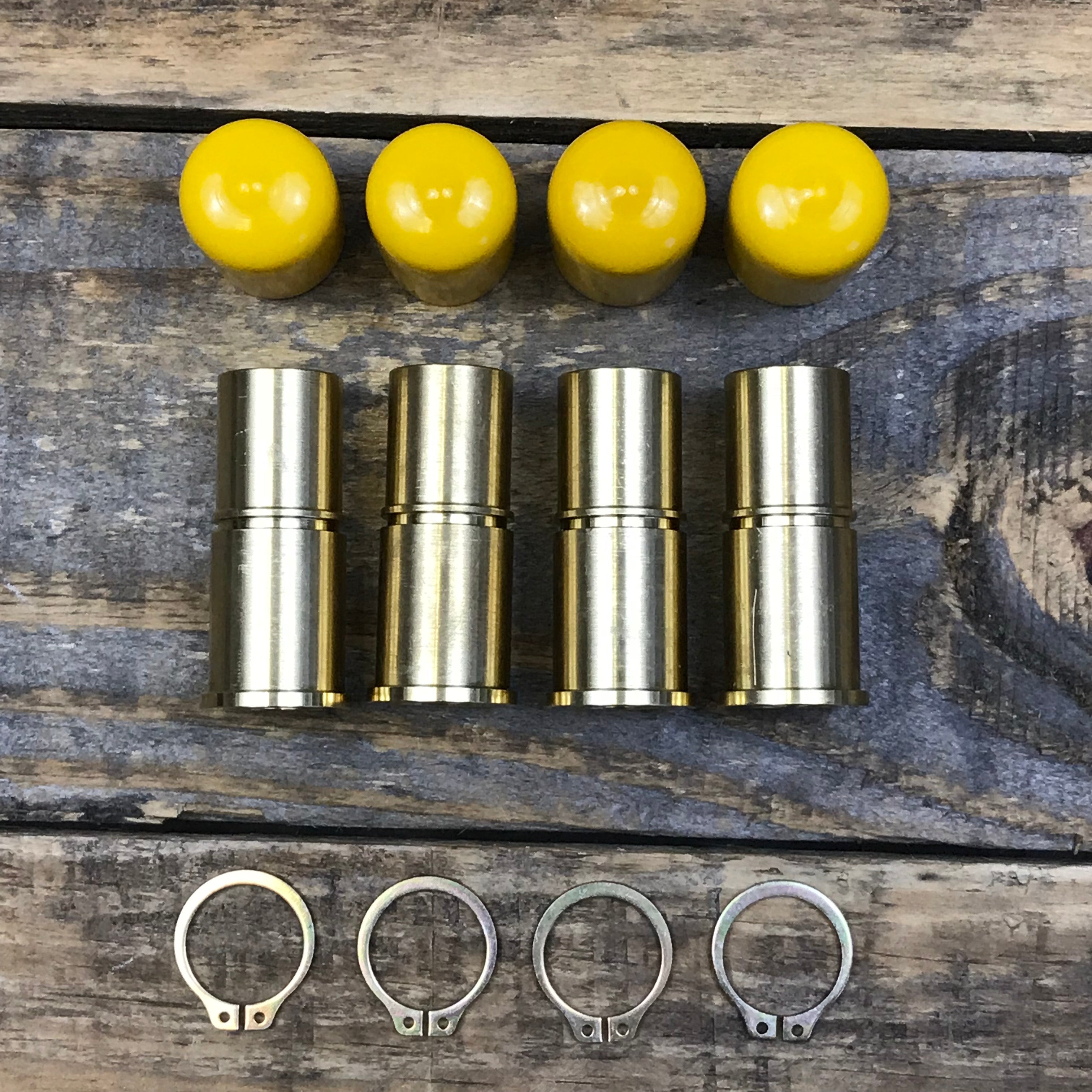

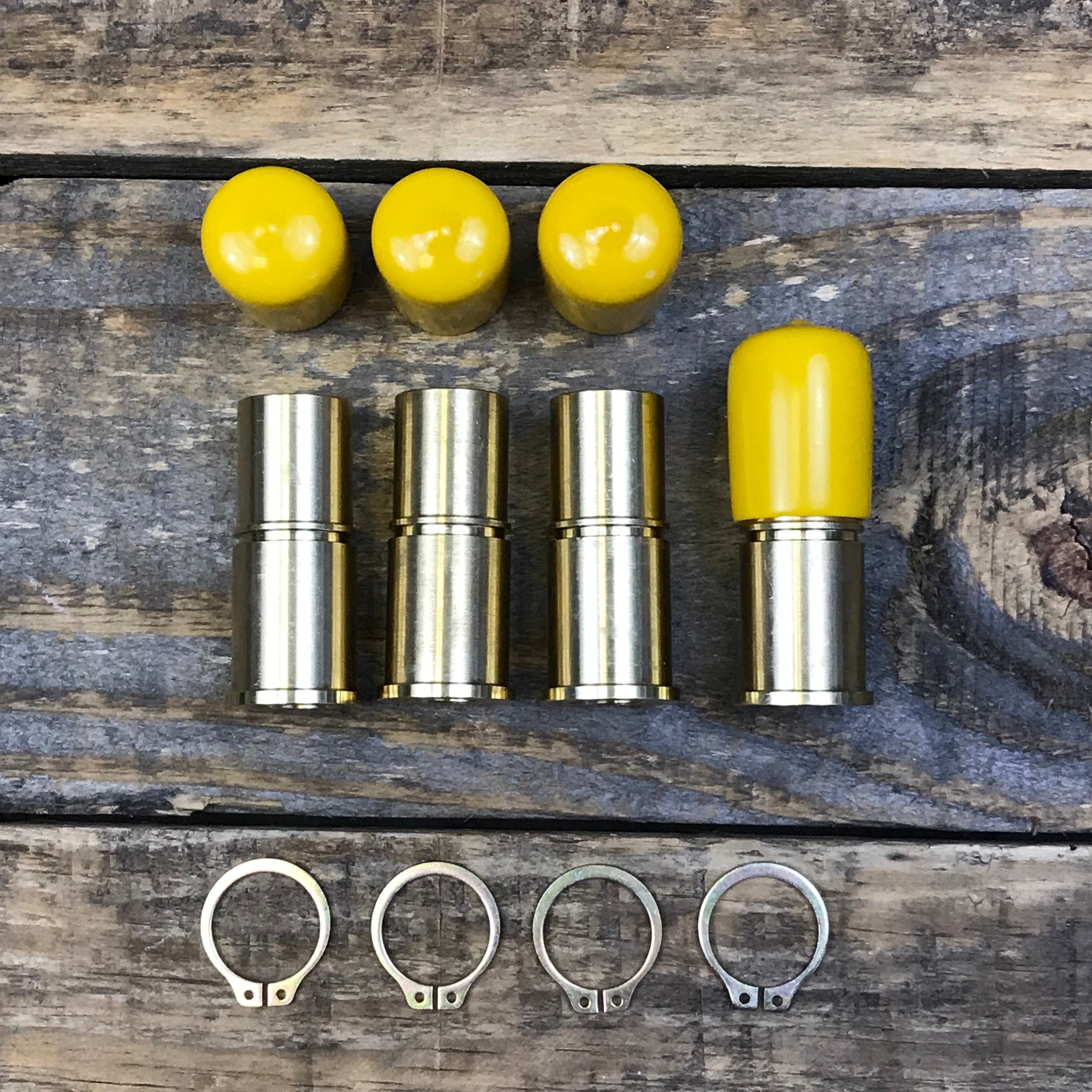

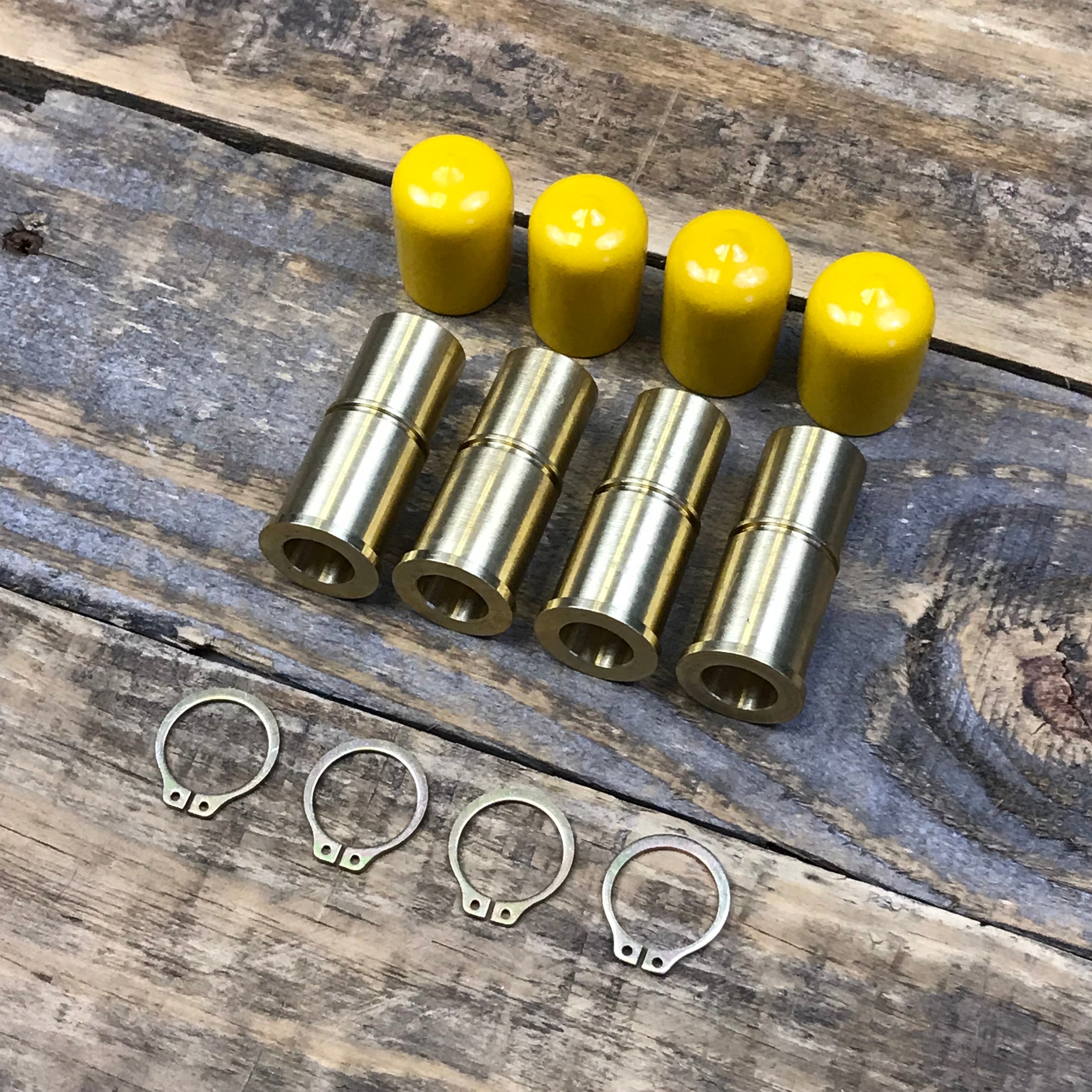

Included: (4) Brass Guide Bushings, (4) Snap Rings,  (4) Dust Caps. One set required per axle.

Fitment: All front and rear BMW factory sliding single calipers made by ATE.

Will not fit the following front calipers:

  • E30 318/325 Girling front calipers
  • E28 M5 front calipers
  • E24 M6, 850csi front calipers
  • E9x 335d, 335i, 335is, 335xi & M3 front calipers
  • E82 1M & 135i optional front 6-piston calipers,
  • E60 525i, 525xi, 528i, 528xi, 530i, 530xi, 535i,535xi, 545i, 550i or M5 front calipers.

Fits the following rear single-piston ATE brake calipers.

1 Series
E82/E88 (08-13) - 128i, 135i, 135is, 1M

3 Series
E30 (84-91) - 318i, 318is, 325e, 325es, 325i, 325is, 325ix, M3
E36 (92-99) - 318i, 318ic, 318is, 318ti, 323ic, 323is, 325i, 325ic, 325is, 328i, 328ic, 328is, M3
E46 (99-06) - 323Ci, 323i, 325Ci, 325i, 325xi, 328Ci, 328i, 330Ci, 330i, 330xi, M3
E9X (06-13) - 325i, 325xi, 328i, 328xi, 330i, 330xi, 335d, 335i, 335xi, M3

5 Series
E28 (82-88) - 528e, 533i, 535i, M5
E34 (89-95) - 525i, 530i, 535i, 540i, M5
E39 (96-03) - 528i, 530i, 540i, M5

6 Series
E24 (77-89) - 630CSi, 633CSi, 635CSi, M6

7 Series
E32 (88-94) - 735i, 735iL, 740i, 740iL, 750iL

8 Series
E31 (91-97) - 840Ci, 850Ci, 850CSi

Z Series
Z3 (96-02) - 1.9, 2.3, 2.5, 2.8, 3.0, M Roadster, M Coupe
Z4 (03-08) - 2.5i, 3.0i, 3.0si, M Roadster, M Coupe
Z4 (09+) - sDrive28i, sDrive30i, sDrive35i, sDrive35is

Requires periodic lubrication.

Products received may vary slightly from images due to manufacturing tolerances or supply chain variables.
