BIM-01-2 Module Dakota Digital

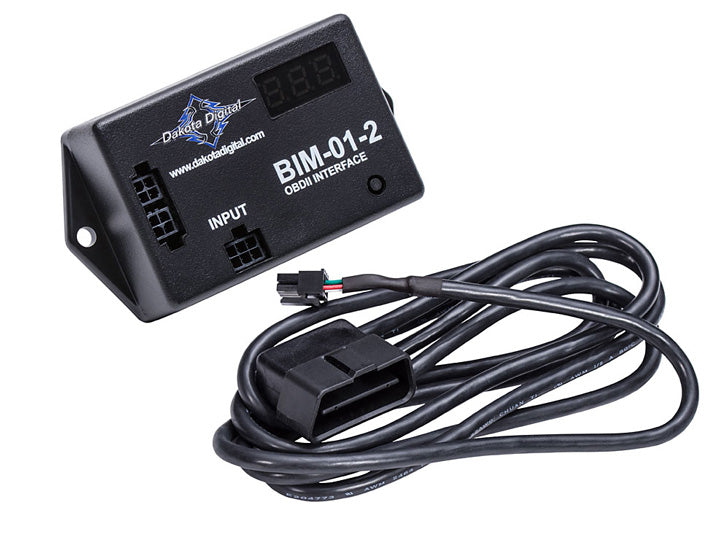

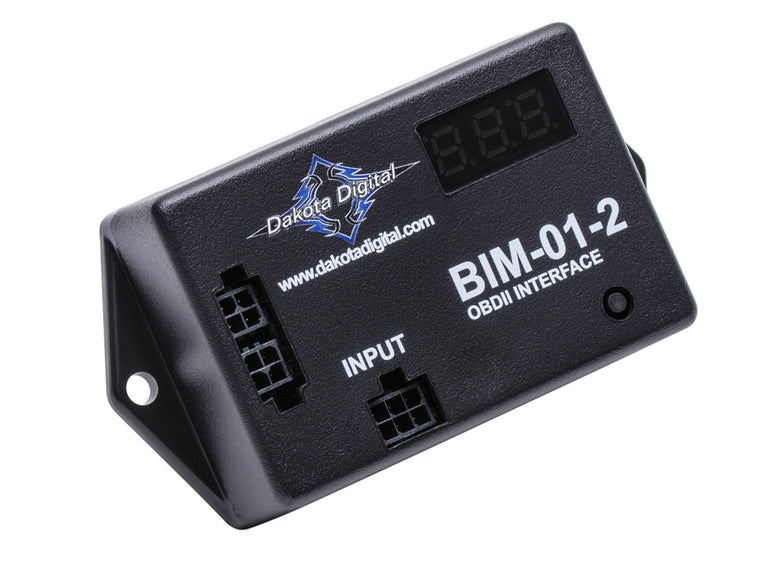

BIM Module from Dakota Digital. This module plugs into the back of your Dakota Cluster and the provided cable will plug into your Vehicles OBD2 Port. The Module will pull all functions that pass through the PCM and display them right to your cluster.

Available on most vehicles (see below):***
Speedometer
Tachometer
Engine Temperature
Check Engine Indicator

Vehicle specific:****
Intake Air Temperature
Transmission Temperature
Ambient Air Temperature
Gear Position
Oil Pressure
Boost Pressure

Due to the various factory and modified ECM's, additional data including (Intake Temp, Transmission Temp, Ambient Air Temp, Oil Pressure, and Gear Position) may be available, but will vary from application to application. Dakota Digital cannot guarantee the presence or accuracy of the Coolant Temp, Intake Temp, Transmission Temp, Ambient Air Temp, Oil Pressure, Boost or Gear Position displays since this is a function of the ECM and matching OEM functional sensors.

*The BIM-01-2 is designed to decode the information provided by the ECM through OBD-II and supply this information to the GRFX, RTX, HDX, VHX and VFD3 systems with a black plastic control module. For any BIM-compatible control boxes which contain the 3.5mm headphone jack BIM input, add part number 394193 adaptor harness.   Earlier instrument systems with an aluminum control module are not capable of BIM connectivity

Products received may vary slightly from images due to manufacturing tolerances or supply chain variables.
