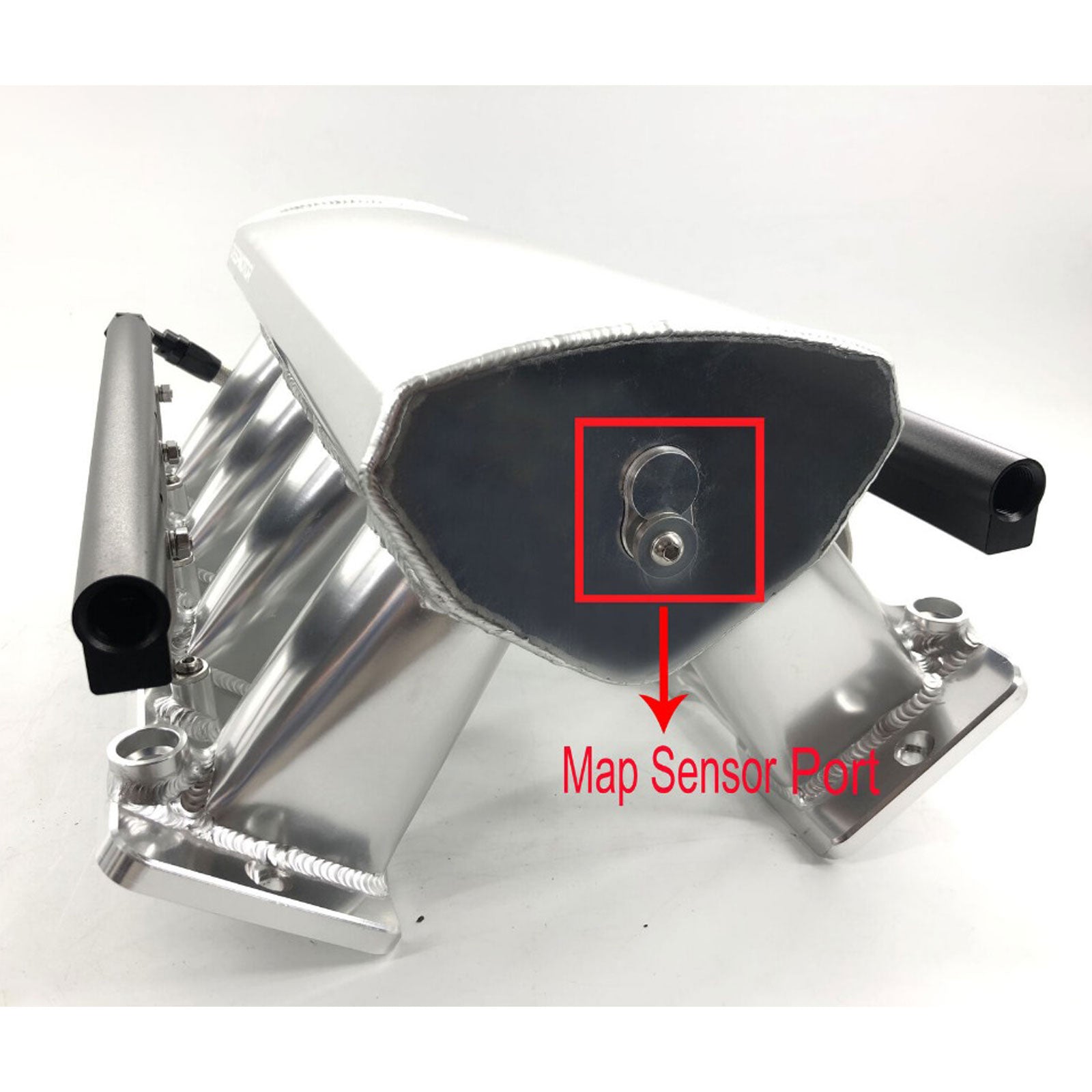

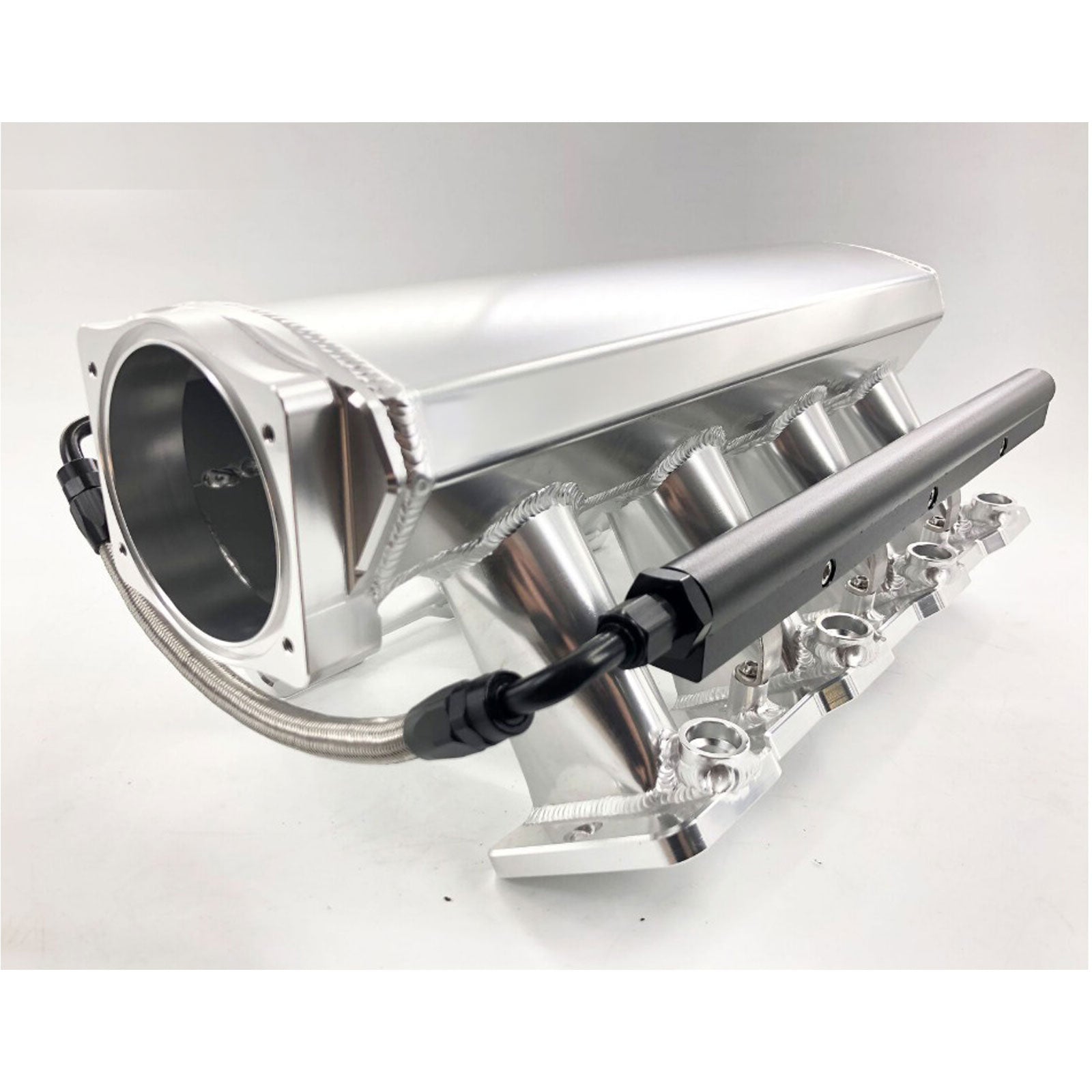

Billet LS1 LS2 LS6 92mm Intake Manifold MAP Sensor Fuel Rail Throttle Body Cable Bracket
LS1 LS2 LS6 92mm Intake Manifold MAP Sensor Port Fuel Rail Throttle Body Cable Bracket
Features:
Part Type: Intake Manifolds, Throttle Body, Fuel Rail Kit
Product Line: Bull Boost Fabricated Intake Manifolds
Engine Block Style: Stock/OEM standard deck
Intake Manifold Height:8.267inch
Injection Style: Multi-port
Basic Operating RPM Range: 2,200-6,800
Intake Section Included: Complete
Injectors Included: No
Fuel Rails Included: Yes
Aftermarket Fuel Rail Required: Yes
Supplemental Bosses Machined: Yes
Supplemental Boss Quantity: Four

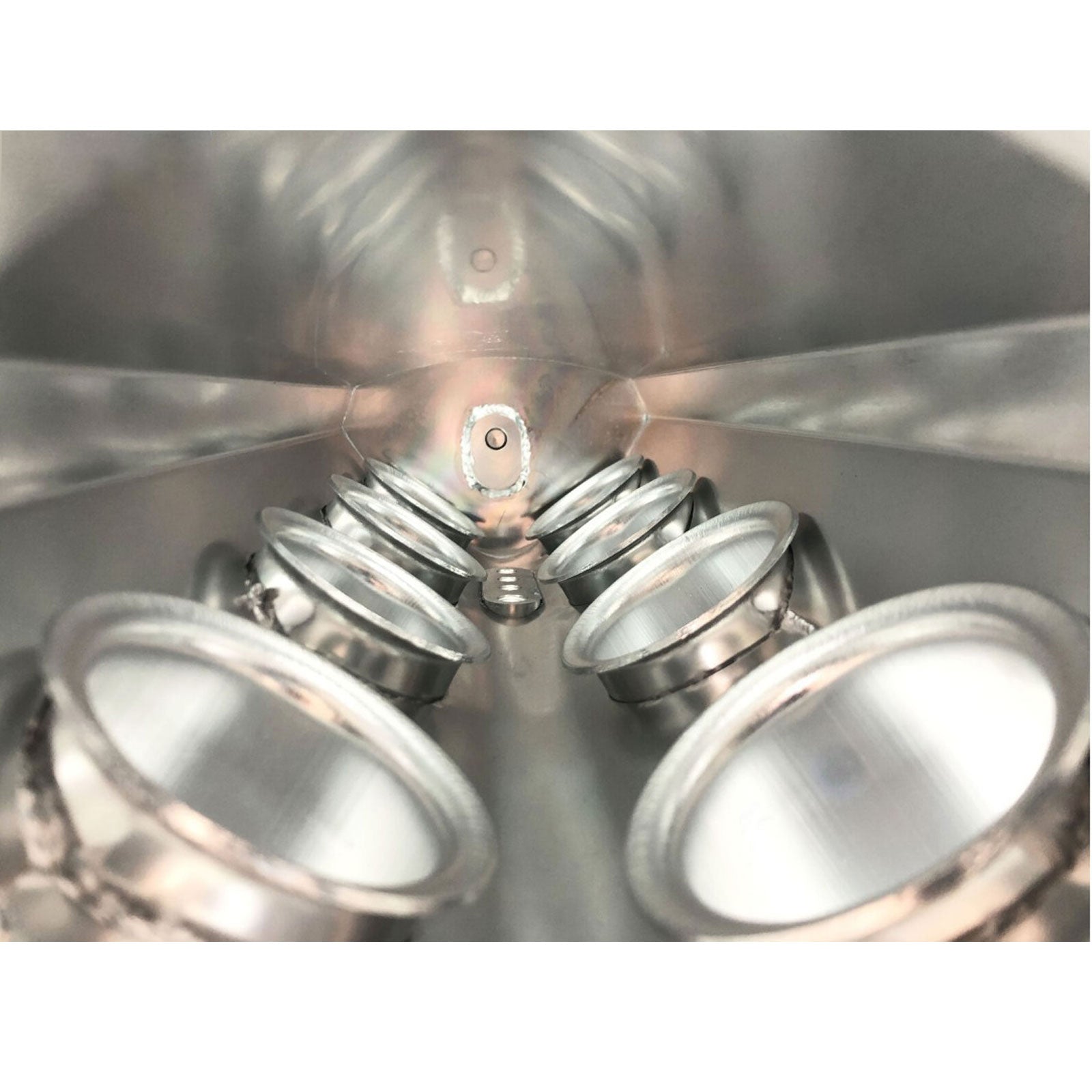

Runners Included: Yes
Runners Removable: No
Plenum Material: Aluminum
Base Material: Aluminum
Finish: Bead Blasting Silver Anodized
Notes: Fits cathedral port cylinder heads. Mounting flange contains extra holes that are used in the manufacturing process; These do not affect performance or reliability since LS intake manifolds use individual port seals rather than a traditional flat gasket. Includes runner o-rings and throttle body o-ring.
Package Contents:
1*intanke manifold
2*fuel rail
1* fuel crossover line

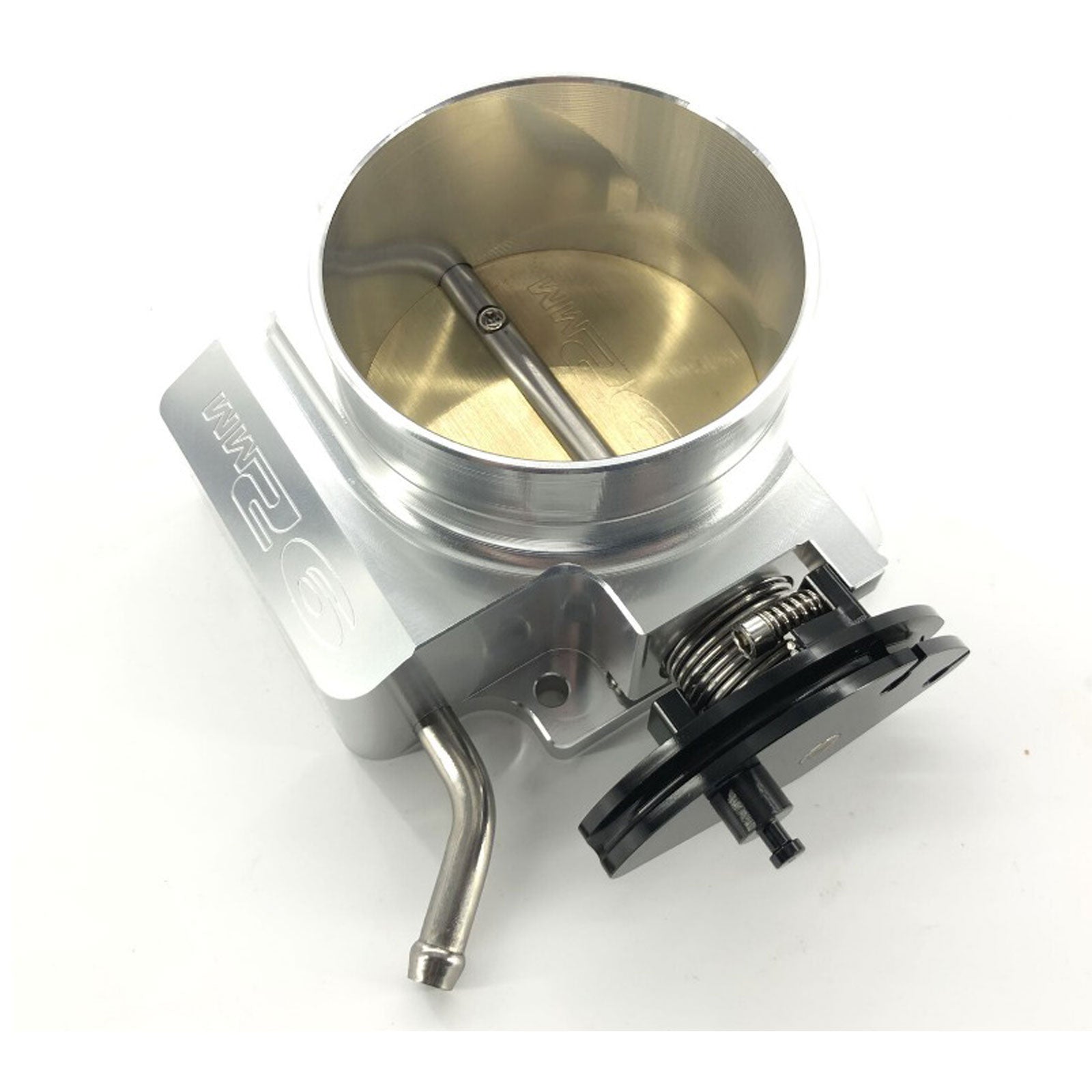

1*92mm Throttle Body
1 Set of throttle bracket
gaskets and other fitting hardware
Products received may vary slightly from images due to manufacturing tolerances or supply chain variables.
