4 Link Rod End Kit - 5/8 Chromoly Heim - 1.25 OD Tubing
Complete 4 Link Fab Kit - 5/8-18 x 5/8 Bore Chromoly Heims & Bungs for 1.25" OD Tubing, .095 or .120 Wall - Optional High Misalignment Spacers
Rod end fabrication kit complete with 5/8 x 5/8 heat treated chromoly heim joints, jam nuts, and weld in bungs (tube adapter). Designed specifically for 1.25" OD tubing, with wall thickness of .095 or .120. Heim joints are made from 4130 Chromoly steel, with a nylon / teflon PTFE liner. The 17955 lb load rating and size make these excellent for building a custom 4 link suspension setup, radius rods and control arms for UTVs, cars, trucks and more. Includes four Left and four Right hand thread heim joints, and matching bungs. Available with or without high misalignment spacers.

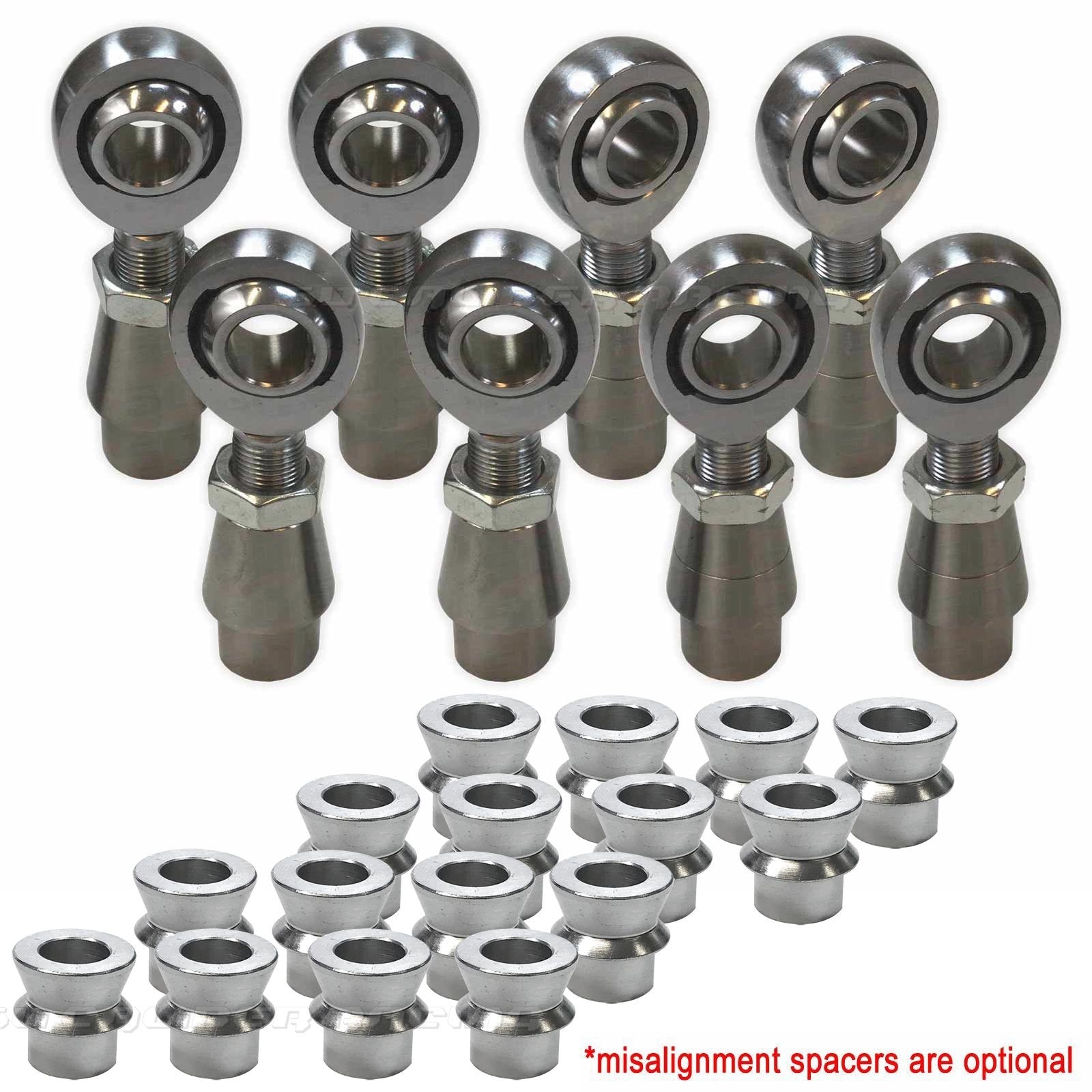

Includes:
- (4) 5/8-18 x 5/8 bore Heims - RH Thread
- (4) 5/8-18 x 5/8 bore Heims - LH Thread
- (4) RH Jam Nuts
- (4) LH Jam Nuts
- (4) RH Weld in Bungs (tubing adapter)
- (4) LH Weld in Bungs (tubing adapter)
Optional:
- (16) Misalignment spacers
Specifications:
Heim Joint:
- 4130 Chromoly Steel, Nylon / Teflon (PTFE) Liner
- Static radial load rating: 17,955 lb
- Thread pitch: Male 5/8" - 18
- Bore: 5/8"
- Ball end diameter: 1.5"
- Socket width: .562"
- Ball width: .75
- Overall length: 3.37"
- Center line length: 2.63"
Bung:
- Thread: Female 5/8"-18
- Material: Chromoly Steel
- Thread Length: Full length
- Choose from 2 different tube sizes:
1.25" OD x .095 Wall x 1.06" ID
1.25" OD x .120 Wall x 1.0" ID
Misalignment Spacers (optional):
- Material: Chromoly Steel
- Surface finish: Zinc plated
- .500" ID x .619" OD x .672" W
- Compatible with 1/2" bolt size
Perfect for fabricating custom suspension and steering links on your 4x4, sand rail, hot rod, race car, utv and more!
- 4 Link suspension arms
- Tie Rods
- Hi steer components
- Radius rods
- Panhard bar / trackbar
- Drag link
- Control arms
- Sway bar end links
- Custom Mounts
Products received may vary slightly from images due to manufacturing tolerances or supply chain variables.
