2005-2010 Mustang BUDGET Return Fuel System for N/A Swaps
Budget Return Style Fuel System kit for all 2005-2010 S197 Mustangs. Uses OE Feed line and fuel filter. Requires drilling the top of the factory fuel pump hat to add the bulk head fitting for the return line.
Kit Contents:

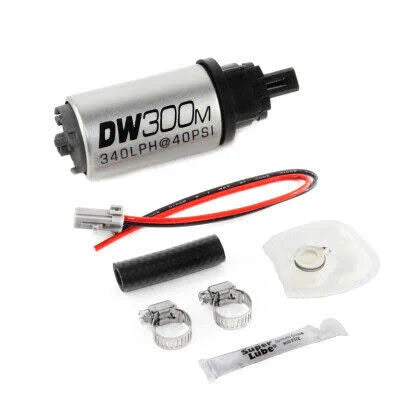

DW340LPH Fuel Pump (direct replacement in stock fuel hat) E85 Compatible

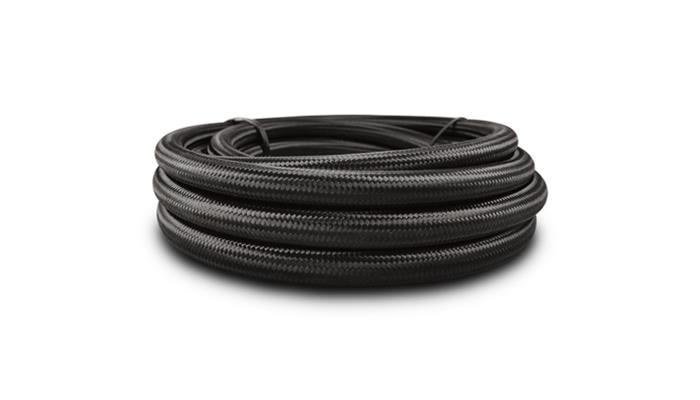

-6 An Return Line 10 FT Roll
(2) 3/8 to -6 AN Quick Connect Fittings (1 for fuel rail, 1 for OEM Feed Line connection)
(5) -6 Straight Fittings

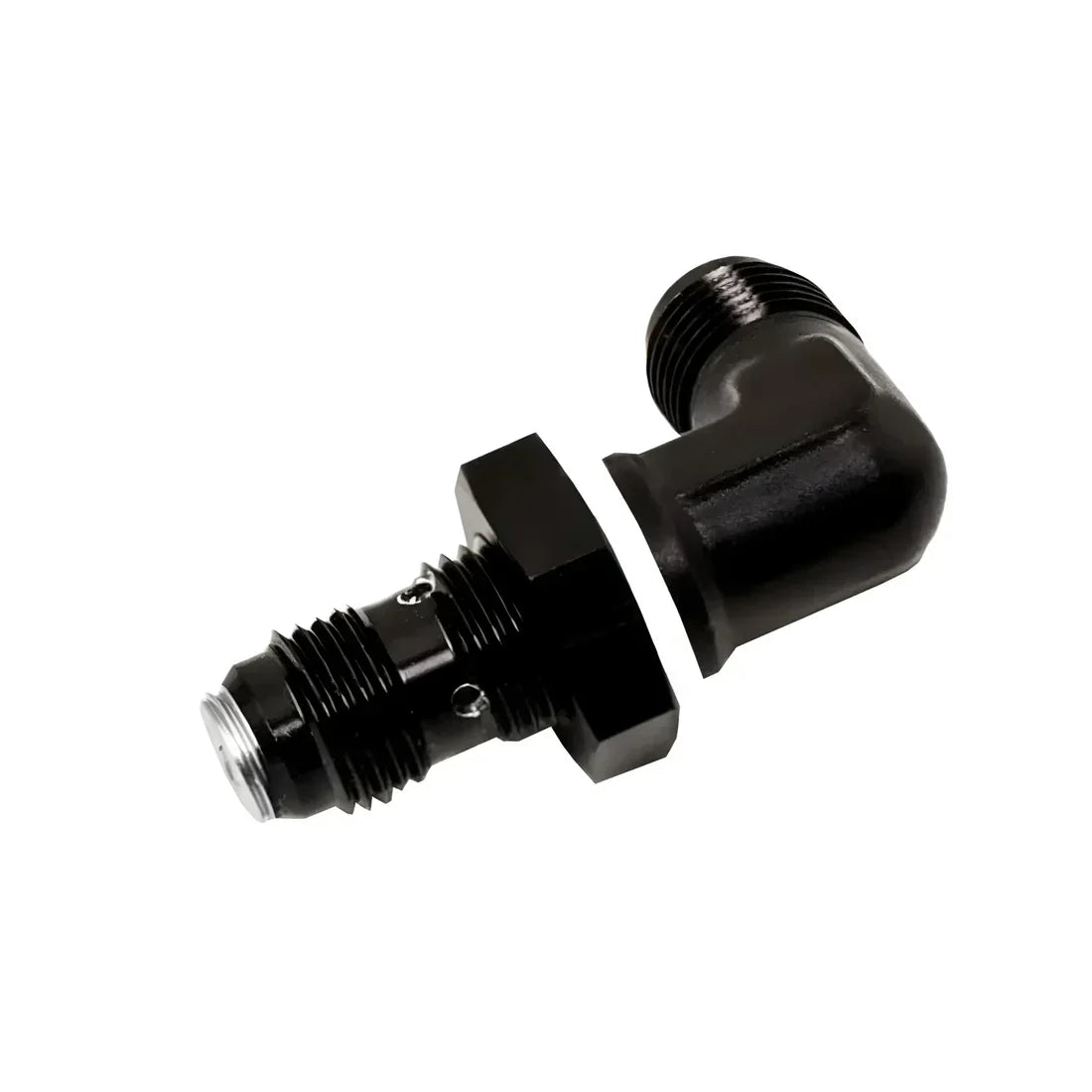

(1) -6 90* Bulkhead Fitting w/seals and nut

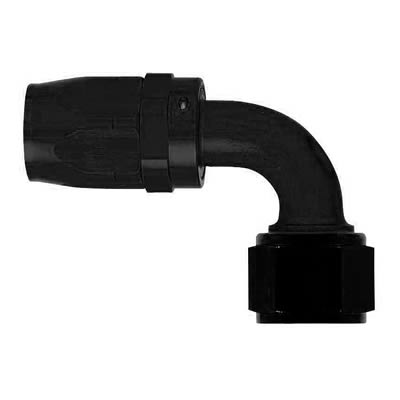

(1) -6 90* Fitting for return out of bottom of regulator
(1) Fuel Pressure Regulator with Pressure Gauge
System will support a E85/Flex Tune, can work in a boosted application on low boost with a Boost a Pump. See our Supercharged S197 Fuel System kit if you need more fuel!
Products received may vary slightly from images due to manufacturing tolerances or supply chain variables.
