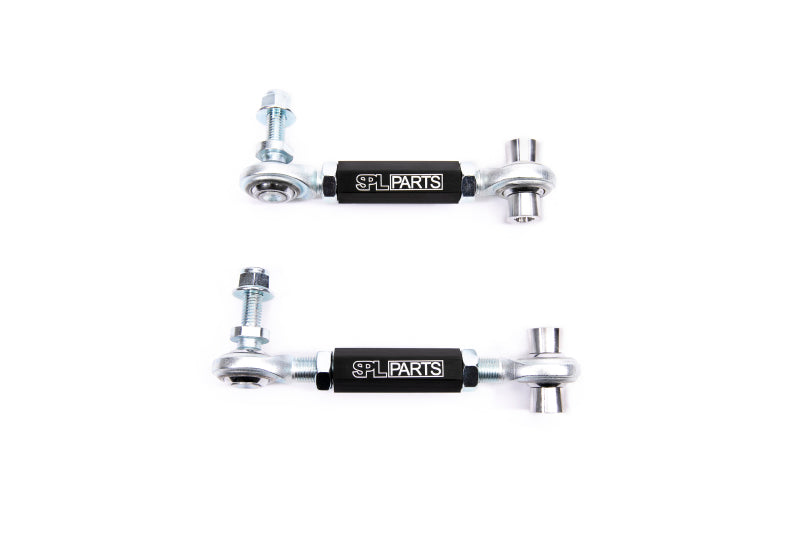

SPL Part Camaro/ATS Front/Rear Swaybar Endlinks

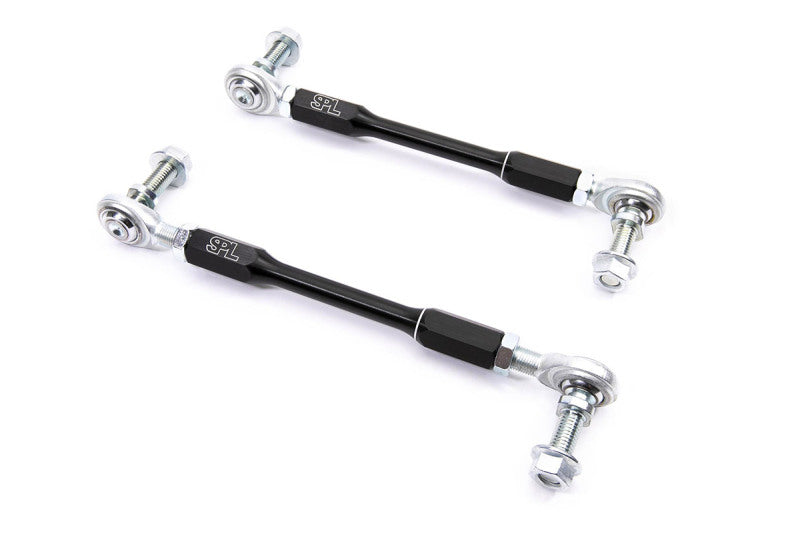

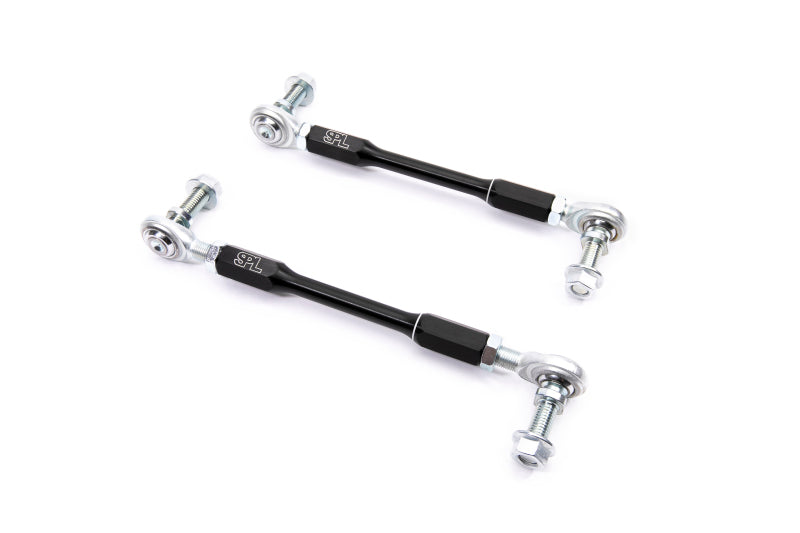

Camaro and ATS/ATS-V Front Endlinks (FE) for the GM Alpha chassis feature massive Teflon lined FK 1/2" bearings to provide the highest load capacity for use with stiffer aftermarket sway bars.  Custom heat treated Chromoly High Misalignment Studs connect to the sway bar and offer extreme articulation capability (65deg) to prevent the endlink from binding when used with different adjustment holes on aftermarket sway bars.

Our Endlinks are length adjustable to eliminate preload on the sway bars, which can result from uneven settling of springs or uneven suspension heights from corner weighting.  Black Anodized 6061-T6 Aluminum Turnbuckles work in conjunction with the left and right hand threaded rod ends for simple and precise adjustment.  These endlinks are perfect for street or race applications.

***Please note that if you have changed your OEM shocks with aftermarket shocks or coilovers, the mounting location may have moved. Please check the distance between the swaybar and the shock mount, and confirm that it is still OEM Length. If it does not fall within this range, please call or email us with the distance required to find you the proper part. SPL cannot confirm fitment with aftermarket shocks and coilovers***

Sold as a pair.

Made in the USA.

Application:

2016+ Chevrolet Camaro (6th Generation)

2013-2019 Cadillac ATS/ATSV

Installation Instructions:

SPL Parts Front Endlinks

Products received may vary slightly from images due to manufacturing tolerances or supply chain variables.
