Why the C5 Corvette Suspension Deserves More Credit
The C5 Corvette (1997–2004) was a turning point in American sports car engineering. With its front mid-engine layout, independent suspension, and transaxle design, the C5 offered balance closer to European exotics than muscle cars. But even with that excellent foundation, the factory suspension has one major limitation—fixed-rate leaf springs.
While innovative for its time, the composite leaf spring setup doesn’t offer the adjustability or fine-tuning precision needed for drifting or track performance. That’s where coilovers come in—bringing fully tunable ride height, damping, and spring rates for any driving style.
>> Check out SLR's C5 Corvette Coilovers here <<
What Are Coilovers and Why They’re a Game-Changer for the C5
A coilover combines a coil spring and shock absorber into one compact assembly. Unlike traditional shocks, coilovers allow independent adjustment of ride height and damping. For the C5 Corvette, this means a complete transformation in suspension dynamics and driver control.
Key Coilover Benefits for the C5:
- Ride Height Adjustability: Lower your Corvette’s center of gravity for better cornering and aesthetics.
- Damping Adjustability: Fine-tune compression and rebound for the perfect balance of comfort and control.
- Spring Rate Tuning: Match your setup to your driving style—soft for street comfort, stiff for track response.
- Improved Weight Transfer: Especially important in drifting and drag racing for traction optimization.
Coilovers effectively replace the factory leaf springs with a modern suspension architecture used in motorsports, drastically improving chassis feedback and control.
SLR Drift Spec Coilovers vs. Generic Kits
Not all coilovers are created equal. Many off-the-shelf kits focus on looks—lowering the car for stance—rather than performance. The SLR Drift Spec Coilovers were designed from the ground up for high-performance driving, whether on the street, track, or drift circuit.
Why SLR Coilovers Stand Out:
- True Motorsports Engineering: Developed by engineers who specialize in drift and time attack applications.
- Spring Rates Tuned for RWD Balance: Keeps the C5 neutral under throttle and predictable during slides.
- Two-Way Adjustable Damping: Independent control of rebound and compression for advanced tuning.
- Monotube Design: Improves heat dissipation and provides more consistent damping under track abuse.
- Customizable Ride Height: Perfect for both slammed street setups and aggressive drift alignment geometry.
Choosing the Right Spring Rates for Your C5 Corvette
Spring rates are at the heart of any coilover setup. Too soft, and you’ll lose precision; too stiff, and you’ll sacrifice grip. For the C5, balance is key—especially since the Corvette chassis responds sensitively to small changes in suspension stiffness.
| Driving Style | Front Spring Rate (kg/mm) | Rear Spring Rate (kg/mm) | Recommended Setup |
|---|---|---|---|
| Street/Comfort | 8 | 7 | Smooth ride with improved body control |
| Track/Grip | 10 | 9 | Sharper cornering with minimal body roll |
| Drift/Angle Setup | 12 | 10 | Quick weight transfer and throttle steering control |
Every C5 reacts slightly differently based on tire choice, alignment, and even driver weight distribution—so treat these values as a starting point, not gospel.
Ride Height and Corner Balance Tuning

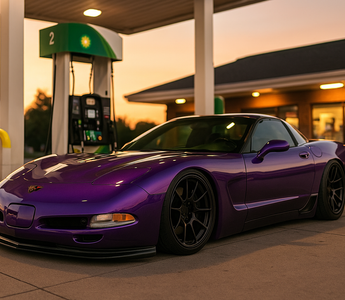

One of the biggest mistakes C5 owners make after installing coilovers is lowering the car too far. While slammed cars look aggressive, excessive lowering alters suspension geometry and introduces bump steer. The ideal setup keeps suspension arms near level, preserving optimal roll center and steering feel.
Pro Tuning Tips:
- Maintain at least 3.5" ground clearance for proper shock travel.
- Use corner balancing to distribute weight evenly across all four tires.
- Set preload evenly on all coilovers before final alignment.
- Recheck toe and camber after ride height adjustments—especially critical for drift or autocross use.
How Coilovers Transform the Corvette’s Handling
Installing coilovers on your C5 Corvette gives an immediate and dramatic improvement in chassis response. You’ll notice:
- Sharper Steering: Reduced body roll and increased steering precision through corners.
- Better Mid-Corner Stability: The car holds its line instead of floating or washing out.
- Improved Traction: Allows for controlled oversteer in drift situations without sudden snapback.
- Custom Feel: You can dial in exactly how you want the car to behave—firm for competition, or compliant for daily drives.
For anyone looking to track, drift, or simply modernize their Corvette’s suspension, coilovers provide an unmatched level of adjustability and feedback.
Installation and Alignment Notes
Installing coilovers is straightforward but requires attention to detail:
- Remove factory transverse leaf springs and shocks.
- Install coilover brackets and hardware per manufacturer specs.
- Ensure the top mounts are torqued properly to prevent binding.
- After installation, perform a 4-wheel alignment using your intended setup specs (street, drift, or track).
For drift setups, SLR recommends increasing front caster and toe-out for faster steering response and easier angle control. For track setups, moderate toe-in and balanced camber ensure maximum grip under braking and acceleration.
Recommended Alignment Settings for C5 Coilover Users
| Setup Type | Front Camber | Rear Camber | Front Toe | Rear Toe |
|---|---|---|---|---|
| Street | -1.5° | -1.2° | 0.05° Out | 0.10° In |
| Track | -2.2° | -1.8° | 0.10° Out | 0.15° In |
| Drift | -3.0° | -2.0° | 0.25° Out | 0.10° In |
Why Coilovers Are a Must for C5 Drifting and Track Driving
The C5’s chassis balance and long wheelbase make it an excellent drift platform—but only with the right suspension setup. Coilovers allow for precise camber and caster tuning, reducing understeer and improving rotation.
For track enthusiasts, coilovers drastically enhance weight transfer control and minimize lap time inconsistencies. Whether you’re sliding through a drift course or chasing apexes, upgraded coilovers provide the foundation your Corvette deserves.
Conclusion: The Smartest Upgrade You Can Make
Few upgrades change the Corvette’s personality as dramatically as a well-tuned coilover kit. From ride quality to drift balance, they unlock the car’s full potential. The SLR Drift Spec Coilovers for C5 were engineered not just for style, but for performance, control, and long-term reliability.
Whether you’re chasing podiums or just a better connection to the road, SLR coilovers deliver where it matters most—balance, confidence, and feedback.
